DF11-28DS-2DSA(05) - Hirose

Description: Hirose DF11 Series, 2mm Pitch 28 Way 2 Row Straight PCB Header, Solder Termination, 2A , pin diameter-0.8

Download DF11-28DS-2DSA(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF11-28DS-2DSA(05) - Hirose - PCB symbol
click to zoom
PCB Footprints

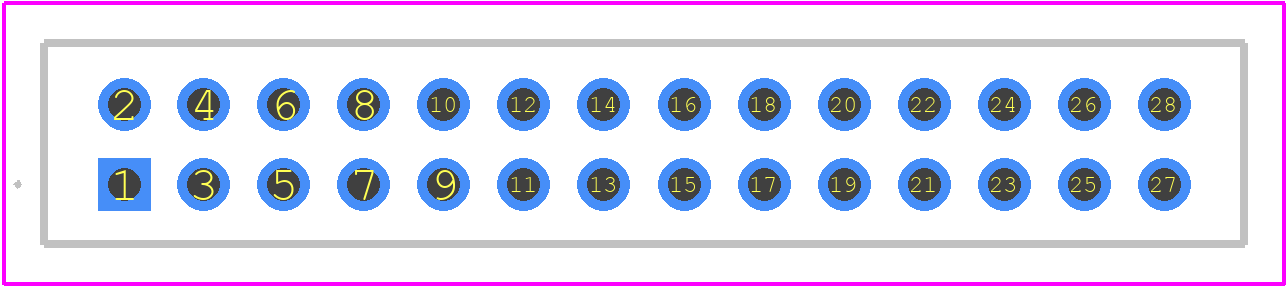

DF11-28DS-2DSA(05) - Hirose PCB footprint - Other - Other - DF11-28DS-2DSA(05)-5
click to zoom
3D Models
DF11-28DS-2DSA(05) - Hirose - 3D model - Other - DF11-28DS-2DSA(05)-5
click to zoom

DF11-28DS-2DSA(05) Details

  • Manufacturer Part Number:

    DF11-28DS-2DSA(05)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

DF11-28DS-2DSA(05) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the DF11-28DS-2DSA(05) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
  • The maximum operating temperature range for the DF11-28DS-2DSA(05) connector is -40°C to 105°C.
  • Yes, the DF11-28DS-2DSA(05) connector is compatible with lead-free soldering and meets the requirements of the RoHS directive.
  • The recommended torque value for the DF11-28DS-2DSA(05) connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF11-28DS-2DSA(05) Overview

Use the download button to access the DF11-28DS-2DSA(05) schematic symbol, PCB footprint, and 3D model.
