DF12(3.5)-20DP-0.5V(86) - Hirose

Description: Connector,Board to Board,DF12 Hirose DF12 Series, 0.5mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 0.3A

Download DF12(3.5)-20DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

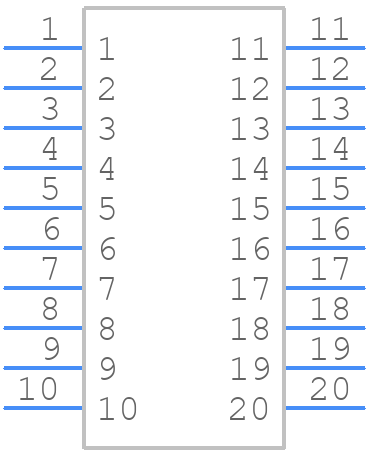

DF12(3.5)-20DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12(3.5)-20DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12(3.5)-20DP-0.5V(86)-1
click to zoom
3D Models
DF12(3.5)-20DP-0.5V(86) - Hirose - 3D model - Other - DF12(3.5)-20DP-0.5V(86)-1
click to zoom

DF12(3.5)-20DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12(3.5)-20DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DF12(3.5)-20DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 in·lb to 13 in·lb) for the screws on the DF12 connector.
  • Yes, the DF12 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • Yes, the DF12 connector is compatible with lead-free soldering. The connector's terminals are made of a lead-free material that can withstand the higher temperatures required for lead-free soldering.
  • The operating temperature range for the DF12 connector is -40°C to 105°C (-40°F to 221°F).
  • The DF12 connector has a moisture-resistant design, but it's not fully waterproof. It can be used in humid environments, but it's not recommended for use in wet or submerged applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12(3.5)-20DP-0.5V(86) Overview

Use the download button to access the DF12(3.5)-20DP-0.5V(86) schematic symbol, PCB footprint, and 3D model.
