DF12-20DS-0.5V(80) footprint, schematic symbol and 3D model by Hirose

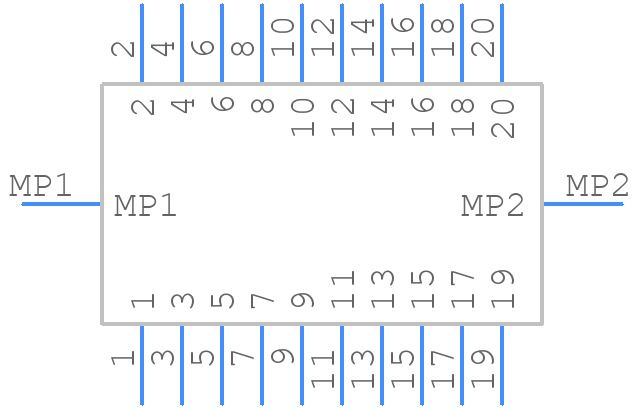

Symbol

click to zoom

PCB Footprints

DF12-20DS-0.5V(80) - Hirose PCB footprint - Other - Other - DF12-20DS-0.5V(80)

click to zoom

3D Models

DF12-20DS-0.5V(80) - Hirose - 3D model - Other - DF12-20DS-0.5V(80)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF12-20DS-0.5V(80)
Part Number DF12-20DS-0.5V(80)
Manufacturer Hirose
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - DF12-20DS-0.5V(80)
Released Date Apr 3, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF12-20DS-0.5V(80) Details

Manufacturer Part Number:
DF12-20DS-0.5V(80)
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Body Breadth:
0.142 inch
Body Depth:
0.106 inch
Body Length:
0.315 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
AU
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
50 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
150VAC V
Durability:
50 Cycles
Filter Feature:
NO
Insulation Resistance:
500000000 Ω
Insulator Color:
BEIGE
Insulator Material:
POLYAMIDE
Mating Contact Pitch:
0.019 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-45 °C
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
0.3 A
Reference Standard:
UL
Terminal Pitch:
0.508 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20

DF12-20DS-0.5V(80) Frequently Asked Questions (FAQs)

The recommended mating sequence for the DF12-20DS-0.5V(80) connector is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the contacts.
Yes, the DF12-20DS-0.5V(80) connector is designed to withstand high-vibration environments. It has a robust design and secure locking mechanism to ensure reliable connections even in harsh conditions.
The maximum operating temperature range for the DF12-20DS-0.5V(80) connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for your application.
The DF12-20DS-0.5V(80) connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's recommended to apply a waterproof coating or sealant to ensure reliable operation in humid or wet environments.
The recommended torque for the screw locks on the DF12-20DS-0.5V(80) connector is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

Expert Contribution

System Verified

Community Approved

DF12-20DS-0.5V(80) Overview

Use the download button to access the DF12-20DS-0.5V(80) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF12-, or try a keyword search, such as Headers and Edge Type Connectors
