DF12B(3.0)-40DP-0.5V(86) - Hirose

Description: Hirose DF12 Series, 0.5mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 0.3A

Download DF12B(3.0)-40DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

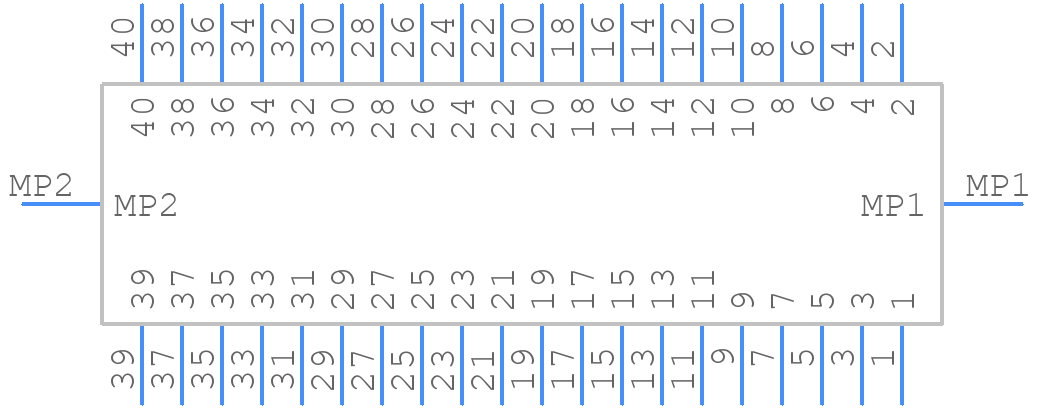

Symbol
DF12B(3.0)-40DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12B(3.0)-40DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12B(3.0)-40DP-0.5V(86)-3
click to zoom
3D Models
DF12B(3.0)-40DP-0.5V(86) - Hirose - 3D model - Other - DF12B(3.0)-40DP-0.5V(86)-3
click to zoom

DF12B(3.0)-40DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12B(3.0)-40DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DF12B(3.0)-40DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the screws on the DF12B connector.
  • Yes, the DF12B connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw tightening.
  • Yes, the DF12B connector is compatible with lead-free soldering. The connector's terminals are made of a lead-free material that meets the requirements of the RoHS directive.
  • The maximum operating temperature for the DF12B connector is 125°C (257°F).
  • The DF12B connector is not designed for use in humid or wet environments. It's recommended to use a connector with a higher IP rating (e.g., IP67 or higher) for applications that require resistance to moisture or water.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12B(3.0)-40DP-0.5V(86) Overview

Use the download button to access the DF12B(3.0)-40DP-0.5V(86) schematic symbol, PCB footprint, and 3D model.
