DF12NB(4.0)-50DP-0.5V(51) - Hirose

Description: 50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Download DF12NB(4.0)-50DP-0.5V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF12NB(4.0)-50DP-0.5V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints

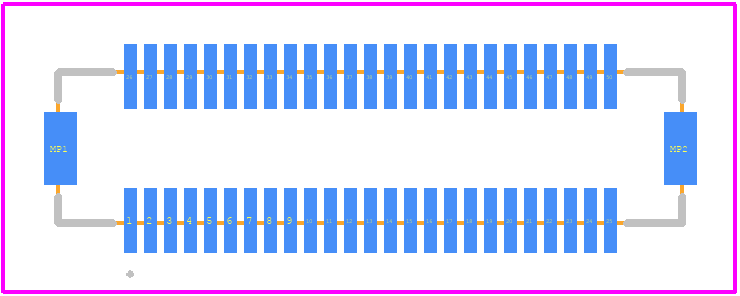

DF12NB(4.0)-50DP-0.5V(51) - Hirose PCB footprint - Other - Other - DF12NB(4.0)-50DP-0.5V(51)-2
click to zoom
3D Models
DF12NB(4.0)-50DP-0.5V(51) - Hirose - 3D model - Other - DF12NB(4.0)-50DP-0.5V(51)-2
click to zoom

DF12NB(4.0)-50DP-0.5V(51) Details

  • Manufacturer Part Number:

    DF12NB(4.0)-50DP-0.5V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF12NB(4.0)-50DP-0.5V(51) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in).
  • Yes, the DF12NB series is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • The DF12NB series has a moisture-resistant design, but it is not fully waterproof. It is recommended to use a waterproof coating or sealant for outdoor applications.
  • The operating temperature range for the DF12NB series is -40°C to 105°C (-40°F to 221°F).
  • The DF12NB series has a current rating of 0.5 A per pin. For high-current applications, it is recommended to use multiple pins in parallel or consider a different connector series.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12NB(4.0)-50DP-0.5V(51) Overview

Use the download button to access the DF12NB(4.0)-50DP-0.5V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF12N, or try a keyword search, such as Headers and Edge Type Connectors
