DF13-40DP-1.25V(55) - Hirose

Description: Hirose DF13 Series, 1.25mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A

Download DF13-40DP-1.25V(55) Model

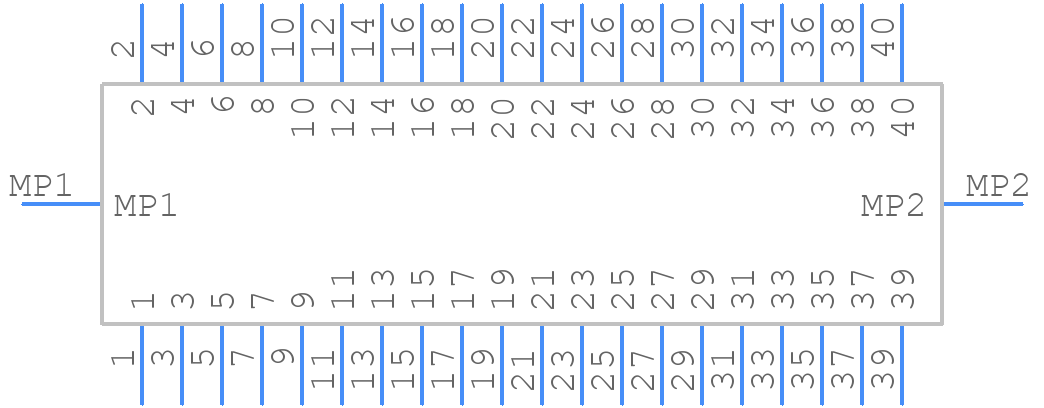

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DF13-40DP-1.25V(55) - Hirose PCB footprint - Other - Other - DF13-40DP-1.25V(55)-2
click to zoom
3D Models
DF13-40DP-1.25V(55) - Hirose  - 3D model - Other - DF13-40DP-1.25V(55)-2
click to zoom

DF13-40DP-1.25V(55) Details

  • Manufacturer Part Number:

    DF13-40DP-1.25V(55)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (8) OVER NICKEL (39)

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DF13-40DP-1.25V(55) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13-40DP-1.25V(55) connector is 20-30 cycles.
  • Yes, the DF13-40DP-1.25V(55) connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
  • The operating temperature range for the DF13-40DP-1.25V(55) connector is -40°C to 105°C.
  • Yes, the DF13-40DP-1.25V(55) connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The typical contact resistance of the DF13-40DP-1.25V(55) connector is 10-20 mΩ.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13-40DP-1.25V(55) Overview

Use the download button to access the DF13-40DP-1.25V(55) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13-, or try a keyword search, such as Headers and Edge Type Connectors
