DF13-40DS-1.25DSA(55) - Hirose

Description: 40 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold

Download DF13-40DS-1.25DSA(55) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF13-40DS-1.25DSA(55) - Hirose - PCB symbol
click to zoom
PCB Footprints

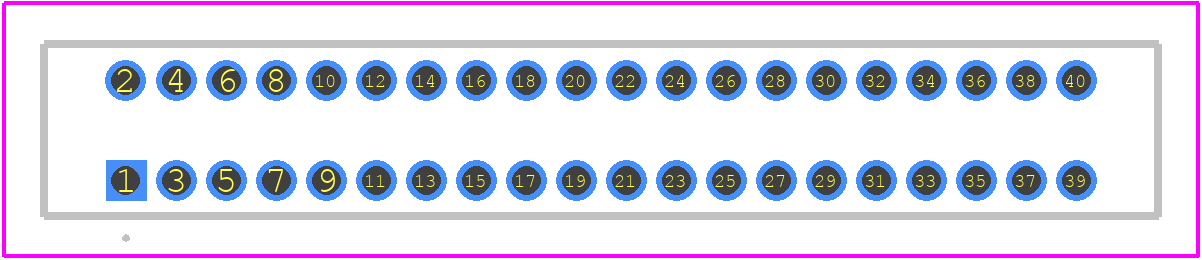

DF13-40DS-1.25DSA(55) - Hirose PCB footprint - Other - Other - DF13-40DS-1.25DSA(55)-4
click to zoom
3D Models
DF13-40DS-1.25DSA(55) - Hirose - 3D model - Other - DF13-40DS-1.25DSA(55)-4
click to zoom

DF13-40DS-1.25DSA(55) Details

  • Manufacturer Part Number:

    DF13-40DS-1.25DSA(55)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

DF13-40DS-1.25DSA(55) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 13 in-lbs) for the screws on the DF13-40DS-1.25DSA(55) connector.
  • Yes, the DF13-40DS-1.25DSA(55) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the DF13-40DS-1.25DSA(55) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance up to 95% RH.
  • The mating cycle life of the DF13-40DS-1.25DSA(55) connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the DF13-40DS-1.25DSA(55) connector is designed for automated assembly and inspection systems, with a compact design and clear markings for easy identification and processing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13-40DS-1.25DSA(55) Overview

Use the download button to access the DF13-40DS-1.25DSA(55) schematic symbol, PCB footprint, and 3D model.
