DF13A-40DP-1.25V(82) - Hirose

Description: CONN HEADER SMD 40POS 1.25MM

Download DF13A-40DP-1.25V(82) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

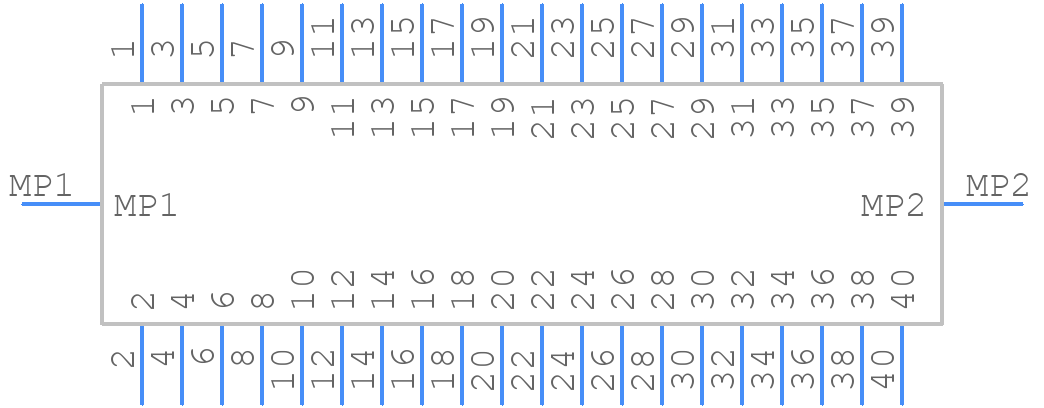

Symbol
DF13A-40DP-1.25V(82) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13A-40DP-1.25V(82) - Hirose PCB footprint - Other - Other - DF13A-40DP-1.25V(82)-1
click to zoom
3D Models
DF13A-40DP-1.25V(82) - Hirose - 3D model - Other - DF13A-40DP-1.25V(82)-1
click to zoom

DF13A-40DP-1.25V(82) Details

  • Manufacturer Part Number:

    DF13A-40DP-1.25V(82)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    SHROUDED

  • Body Breadth:

    0.272 inch

  • Body Depth:

    0.189 inch

  • Body Length:

    1.215 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.049 inch

  • Mating Contact Row Spacing:

    0.049 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    6 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DF13A-40DP-1.25V(82) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the DF13A-40DP-1.25V(82) connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
  • Yes, the DF13A-40DP-1.25V(82) connector is compatible with lead-free soldering, but it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliability.
  • The maximum operating temperature of the DF13A-40DP-1.25V(82) connector is 125°C, but it's recommended to consult the datasheet for specific temperature ratings and derating guidelines.
  • The DF13A-40DP-1.25V(82) connector is designed to withstand harsh environments, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability in specific environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13A-40DP-1.25V(82) Overview

Use the download button to access the DF13A-40DP-1.25V(82) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13A, or try a keyword search, such as Headers and Edge Type Connectors
