DF13A-40DP-1.25V(91) - Hirose

Description: CONN HEADER SMD 40POS 1.25MM

Download DF13A-40DP-1.25V(91) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

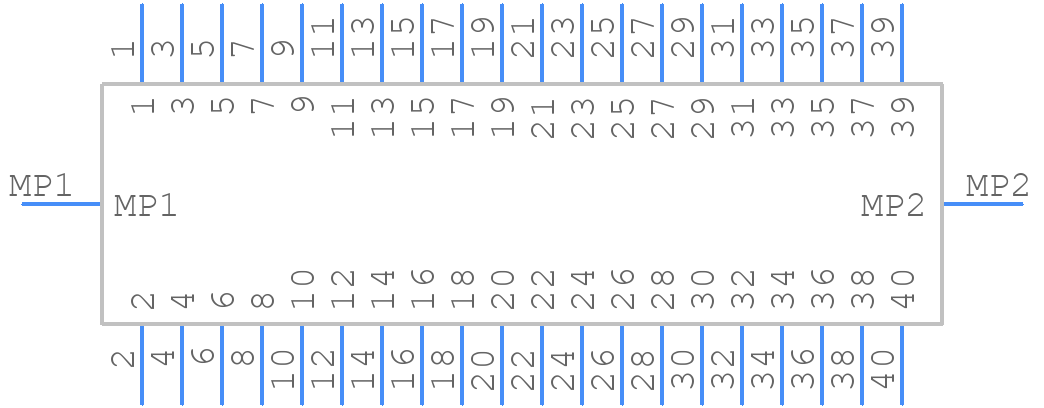

Symbol
DF13A-40DP-1.25V(91) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13A-40DP-1.25V(91) - Hirose PCB footprint - Other - Other - DF13A-40DP-1.25V(91)-3
click to zoom
3D Models
DF13A-40DP-1.25V(91) - Hirose - 3D model - Other - DF13A-40DP-1.25V(91)-3
click to zoom

DF13A-40DP-1.25V(91) Details

  • Manufacturer Part Number:

    DF13A-40DP-1.25V(91)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Body Breadth:

    0.217 inch

  • Body Depth:

    0.189 inch

  • Body Length:

    1.214 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    SN/CU OVER NI

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.049 inch

  • Mating Contact Row Spacing:

    0.049 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.9944 mm

  • Plating Thickness:

    7.87u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

DF13A-40DP-1.25V(91) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13A-40DP-1.25V(91) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or a authorized distributor for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
  • While the DF13A-40DP-1.25V(91) connector is designed to be reliable, it's crucial to assess the specific vibration requirements of your application. Hirose Electric Co Ltd recommends consulting their vibration testing standards and guidelines to ensure the connector meets your application's vibration requirements.
  • The maximum operating temperature for the DF13A-40DP-1.25V(91) connector is 105°C. However, it's essential to note that the connector's performance and reliability may degrade at higher temperatures. Consult with Hirose Electric Co Ltd or a authorized distributor for specific guidance on temperature ratings.
  • The DF13A-40DP-1.25V(91) connector is designed to be reliable in various environments, but it's crucial to assess the specific environmental requirements of your application. Hirose Electric Co Ltd recommends consulting their environmental testing standards and guidelines to ensure the connector meets your application's environmental requirements.
  • The recommended torque for the DF13A-40DP-1.25V(91) connector is 0.5-1.5 N·m. However, it's essential to consult with Hirose Electric Co Ltd or a authorized distributor for specific guidance on torque requirements, as it may vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13A-40DP-1.25V(91) Overview

Use the download button to access the DF13A-40DP-1.25V(91) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13A, or try a keyword search, such as Headers and Edge Type Connectors
