DF13E-10DP-1.25V(51) - Hirose

Description: Headers & Wire Housings 1.25MM DR STRT PIN HDR 10P SMT GLD

Download DF13E-10DP-1.25V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

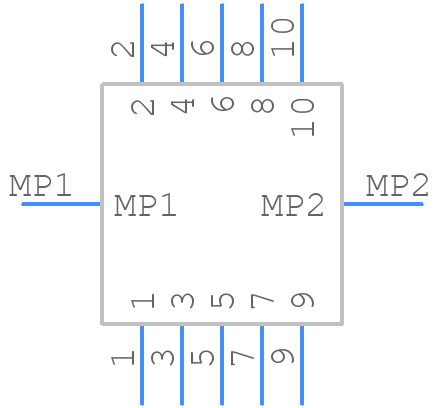

DF13E-10DP-1.25V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13E-10DP-1.25V(51) - Hirose PCB footprint - Other - Other - DF13E-10DP-1.25V(51)-1
click to zoom
3D Models
DF13E-10DP-1.25V(51) - Hirose - 3D model - Other - DF13E-10DP-1.25V(51)-1
click to zoom

DF13E-10DP-1.25V(51) Details

  • Manufacturer Part Number:

    DF13E-10DP-1.25V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

DF13E-10DP-1.25V(51) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13E-10DP-1.25V(51) connector is 20-30 cycles. However, it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
  • While the DF13E-10DP-1.25V(51) connector is designed to be reliable, it's not specifically designed for high-vibration environments. For such applications, consider using connectors with additional features like locking mechanisms or specialized vibration-resistant designs.
  • The operating temperature range for the DF13E-10DP-1.25V(51) connector is typically -40°C to 105°C. However, it's essential to consult the datasheet and manufacturer's guidelines for specific temperature ratings and derating factors.
  • The DF13E-10DP-1.25V(51) connector is designed for general-purpose applications and may not be suitable for harsh environments. For such applications, consider using connectors with specialized coatings, seals, or materials that can withstand the specific environmental conditions.
  • The recommended torque for the DF13E-10DP-1.25V(51) connector is typically 0.5-1.5 N·m. However, it's essential to consult the datasheet and manufacturer's guidelines for specific torque recommendations and application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13E-10DP-1.25V(51) Overview

Use the download button to access the DF13E-10DP-1.25V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13E, or try a keyword search, such as Headers and Edge Type Connectors
