DF14-25P-1.25H(26) - Hirose

Description: Connector, PCB-Board-to-Wire, 1.25mm Hirose DF14 Series, 1.25mm Pitch 25 Way 1 Row Right Angle PCB Header, Solder Termination, 1A

Download DF14-25P-1.25H(26) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

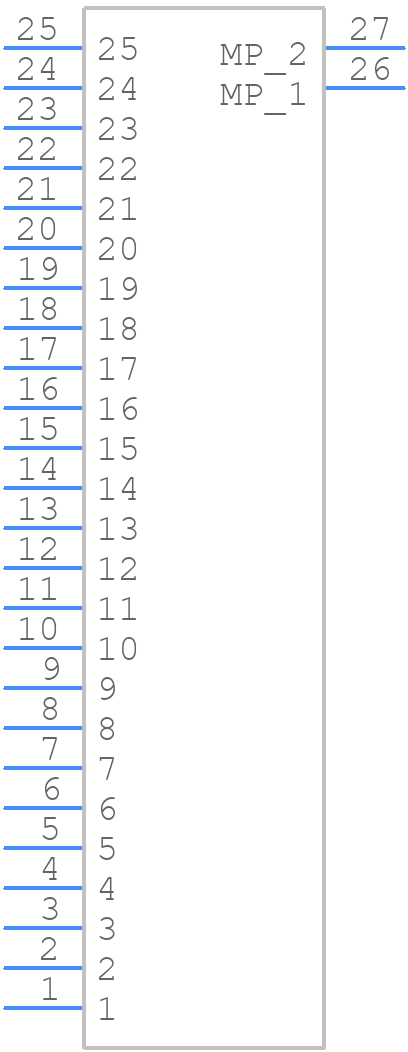

Symbol
DF14-25P-1.25H(26) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14-25P-1.25H(26) - Hirose PCB footprint - Other - Other - DF14-25P-1.25H(26)-4
click to zoom
3D Models
DF14-25P-1.25H(26) - Hirose - 3D model - Other - DF14-25P-1.25H(26)-4
click to zoom

DF14-25P-1.25H(26) Details

  • Manufacturer Part Number:

    DF14-25P-1.25H(26)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

DF14-25P-1.25H(26) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m.
  • Yes, the DF14-25P-1.25H(26) is designed to withstand vibrations and can be used in high-vibration applications.
  • The operating temperature range for the DF14-25P-1.25H(26) is -40°C to 105°C.
  • Yes, the DF14-25P-1.25H(26) is designed to be resistant to dust, moisture, and other environmental factors, making it suitable for use in harsh environments.
  • Yes, the DF14-25P-1.25H(26) can be used with a cable assembly, but it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure proper design and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF14-25P-1.25H(26) Overview

Use the download button to access the DF14-25P-1.25H(26) schematic symbol, PCB footprint, and 3D model.
