DF14A-20P-1.25H(52) - Hirose

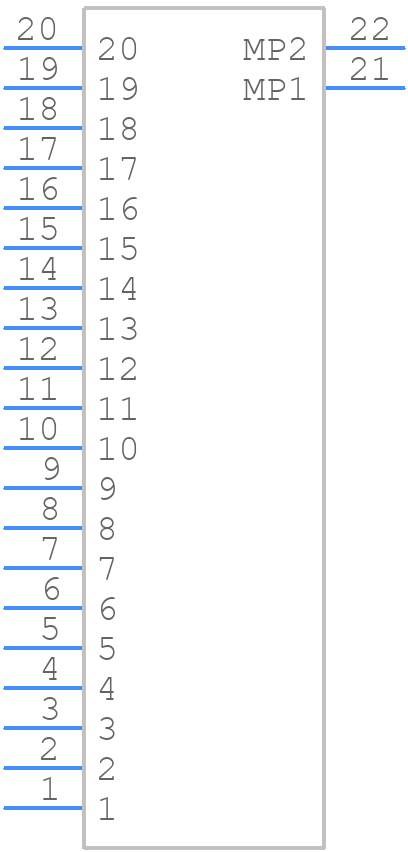

DF14A-20P-1.25H(52) Details

• Manufacturer Part Number:

  DF14A-20P-1.25H(52)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  8.3

• Additional Feature:

  LOW PROFILE

• Board Mounting Option:

  SOLDER HOLD DOWN

• Body Breadth:

  0.098 inch

• Body Depth:

  0.264 inch

• Body Length:

  1.179 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  3 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.049 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  3.94u inch

• Polarization Key:

  POLARIZED KEY

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3 N
