DF15(3.2)-20DP-0.65V(56) - Hirose

Description: Board to Board & Mezzanine Connectors

Download DF15(3.2)-20DP-0.65V(56) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

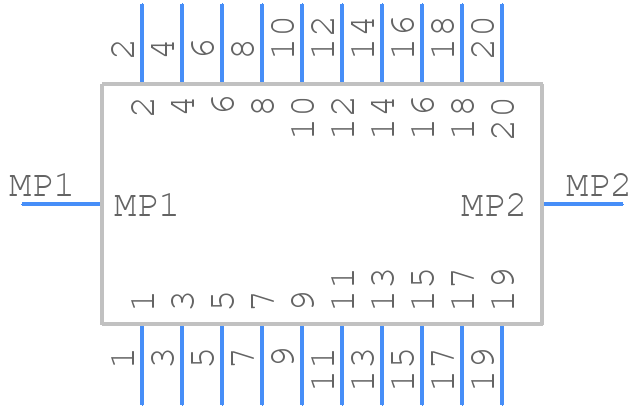

DF15(3.2)-20DP-0.65V(56) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF15(3.2)-20DP-0.65V(56) - Hirose PCB footprint - Other - Other - DF15(3.2)-20DP-0.65V(56)-1
click to zoom
3D Models
DF15(3.2)-20DP-0.65V(56) - Hirose - 3D model - Other - DF15(3.2)-20DP-0.65V(56)-1
click to zoom

DF15(3.2)-20DP-0.65V(56) Details

  • Manufacturer Part Number:

    DF15(3.2)-20DP-0.65V(56)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    50 mΩ

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    150VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.026 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.699 mm

  • Plating Thickness:

    3.93u inch

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.65 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DF15(3.2)-20DP-0.65V(56) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF15(3.2)-20DP-0.65V(56) connector is 20-30 cycles. However, it's essential to consult the datasheet and Hirose's application notes for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
  • While the DF15(3.2)-20DP-0.65V(56) connector is designed to be reliable, it's crucial to evaluate its performance in high-vibration environments. Hirose recommends consulting their vibration testing data and performing additional testing to ensure the connector meets the specific requirements of your application.
  • The maximum operating temperature for the DF15(3.2)-20DP-0.65V(56) connector is 105°C. However, it's essential to note that the connector's performance may degrade at higher temperatures, and Hirose recommends consulting their temperature derating charts for specific guidance.
  • The DF15(3.2)-20DP-0.65V(56) connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water. However, it's crucial to ensure proper sealing and follow Hirose's guidelines for environmental protection to maintain the connector's reliability in humid or wet environments.
  • The recommended torque for the DF15(3.2)-20DP-0.65V(56) connector's screws is 0.5 N·m to 1.0 N·m. It's essential to follow Hirose's torque recommendations to ensure proper mating and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF15(3.2)-20DP-0.65V(56) Overview

Use the download button to access the DF15(3.2)-20DP-0.65V(56) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF15(, or try a keyword search, such as Headers and Edge Type Connectors
