DF17(1.0H)-30DP-0.5V(57) - Hirose

Description: Hirose DF17 Series, 0.5mm Pitch 30 Way 2 Row Straight PCB Header, Surface Mount, Solder Termination

Download DF17(1.0H)-30DP-0.5V(57) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

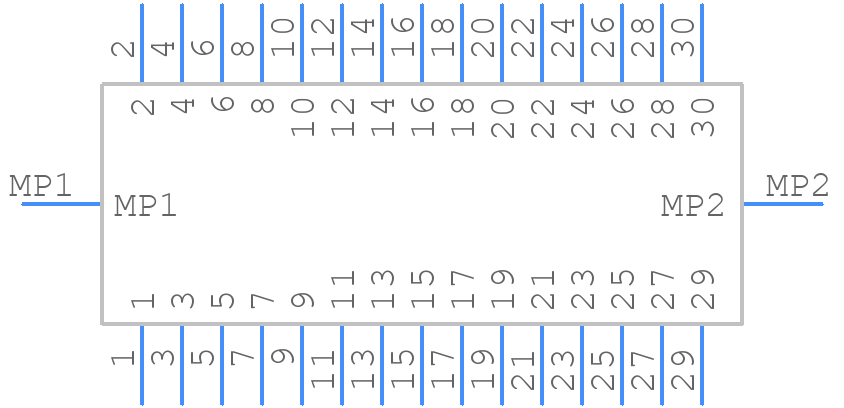

Symbol
DF17(1.0H)-30DP-0.5V(57) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF17(1.0H)-30DP-0.5V(57) - Hirose PCB footprint - Other - Other - DF17(1.0H)-30DP-0.5V(57)-1
click to zoom
3D Models
DF17(1.0H)-30DP-0.5V(57) - Hirose - 3D model - Other - DF17(1.0H)-30DP-0.5V(57)-1
click to zoom

DF17(1.0H)-30DP-0.5V(57) Details

  • Manufacturer Part Number:

    DF17(1.0H)-30DP-0.5V(57)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

DF17(1.0H)-30DP-0.5V(57) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values for your application.
  • Yes, the DF17(1.0H)-30DP-0.5V(57) connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and validation.
  • The operating temperature range for the DF17(1.0H)-30DP-0.5V(57) connector is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
  • Yes, the DF17(1.0H)-30DP-0.5V(57) connector is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering profile recommendations.
  • The mating cycle life of the DF17(1.0H)-30DP-0.5V(57) connector is 500 cycles minimum. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle life information and testing validation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF17(1.0H)-30DP-0.5V(57) Overview

Use the download button to access the DF17(1.0H)-30DP-0.5V(57) schematic symbol, PCB footprint, and 3D model.
