DF17(3.0)-26DS-0.5V(57) - Hirose

Description: Board to Board & Mezzanine Connectors 26P F RECEPTACLE STRAIGHT SMT GLD PLT

Download DF17(3.0)-26DS-0.5V(57) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

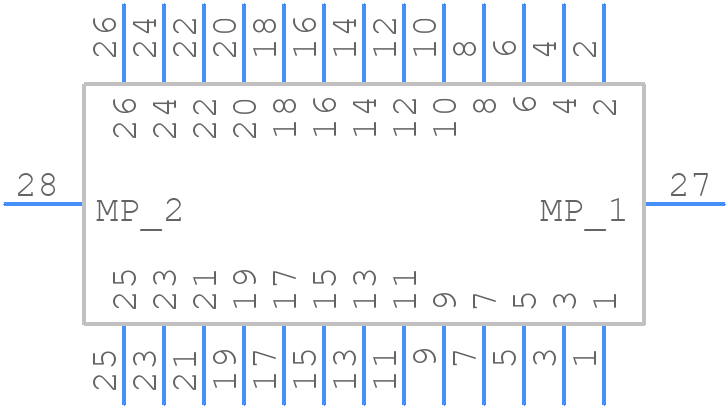

Symbol
DF17(3.0)-26DS-0.5V(57) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF17(3.0)-26DS-0.5V(57) - Hirose PCB footprint - Other - Other - DF17(3.0)-26DS-0.5V(57)-1
click to zoom
3D Models
DF17(3.0)-26DS-0.5V(57) - Hirose - 3D model - Other - DF17(3.0)-26DS-0.5V(57)-1
click to zoom

DF17(3.0)-26DS-0.5V(57) Details

  • Manufacturer Part Number:

    DF17(3.0)-26DS-0.5V(57)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0
