DF17(3.0H)-30DS-0.5V(57) - Hirose

Description: Hirose DF17 Series 0.5mm Pitch 30 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination

Download DF17(3.0H)-30DS-0.5V(57) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

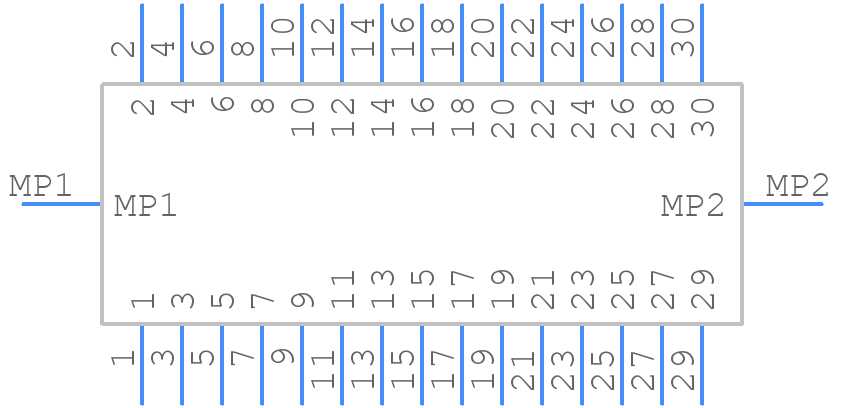

DF17(3.0H)-30DS-0.5V(57) - Hirose - PCB symbol
click to zoom
PCB Footprints

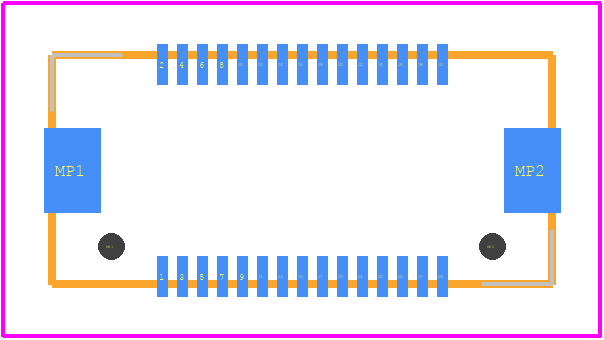

DF17(3.0H)-30DS-0.5V(57) - Hirose PCB footprint - Other - Other - DF17(3.0H)-30DS-0.5V(57)-1
click to zoom
3D Models
DF17(3.0H)-30DS-0.5V(57) - Hirose - 3D model - Other - DF17(3.0H)-30DS-0.5V(57)-1
click to zoom

DF17(3.0H)-30DS-0.5V(57) Details

  • Manufacturer Part Number:

    DF17(3.0H)-30DS-0.5V(57)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

DF17(3.0H)-30DS-0.5V(57) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values for your application.
  • Yes, the DF17(3.0H)-30DS-0.5V(57) connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and validation.
  • The operating temperature range for the DF17(3.0H)-30DS-0.5V(57) connector is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings for your application.
  • Yes, the DF17(3.0H)-30DS-0.5V(57) connector is compatible with lead-free soldering. Hirose Electric Co Ltd uses lead-free materials and processes to ensure compliance with RoHS and other environmental regulations.
  • The mating cycle life of the DF17(3.0H)-30DS-0.5V(57) connector is 500 cycles minimum. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle life ratings for your application.
