DF17(4.0)-20DP-0.5V(57) footprint, schematic symbol and 3D model by Hirose

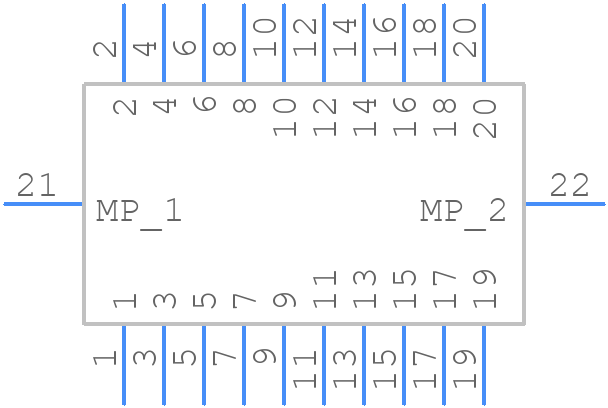

Symbol

click to zoom

PCB Footprints

DF17(4.0)-20DP-0.5V(57) - Hirose PCB footprint - Other - Other - DF17(4.0)-20DP-0.5V(57)-4

click to zoom

3D Models

DF17(4.0)-20DP-0.5V(57) - Hirose - 3D model - Other - DF17(4.0)-20DP-0.5V(57)-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF17(4.0)-20DP-0.5V(57)
Part Number DF17(4.0)-20DP-0.5V(57)
Manufacturer Hirose
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - DF17(4.0)-20DP-0.5V(57)-4
Released Date Oct 30, 2018
Last Modified Date Jun 9, 2025 7:52 AM UTC
Pinout / Pin List Click Here (Member Only)

DF17(4.0)-20DP-0.5V(57) Details

Manufacturer Part Number:
DF17(4.0)-20DP-0.5V(57)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.5 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20
UL Flammability Code:
94V-0

DF17(4.0)-20DP-0.5V(57) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values for your application.
Yes, the DF17(4.0)-20DP-0.5V(57) connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and validation.
The operating temperature range for the DF17(4.0)-20DP-0.5V(57) connector is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
Yes, the DF17(4.0)-20DP-0.5V(57) connector is compatible with lead-free soldering. Hirose Electric Co Ltd recommends following the recommended soldering conditions and profiles to ensure reliable connections.
The mating cycle rating for the DF17(4.0)-20DP-0.5V(57) connector is 500 cycles. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle ratings and testing information.

Trust Checks

Community Provided

System Verified

Community Approved

DF17(4.0)-20DP-0.5V(57) Overview

Use the download button to access the DF17(4.0)-20DP-0.5V(57) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF17(, or try a keyword search, such as Headers and Edge Type Connectors
