DF17B(1.0H)-80DP-0.5V(57) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

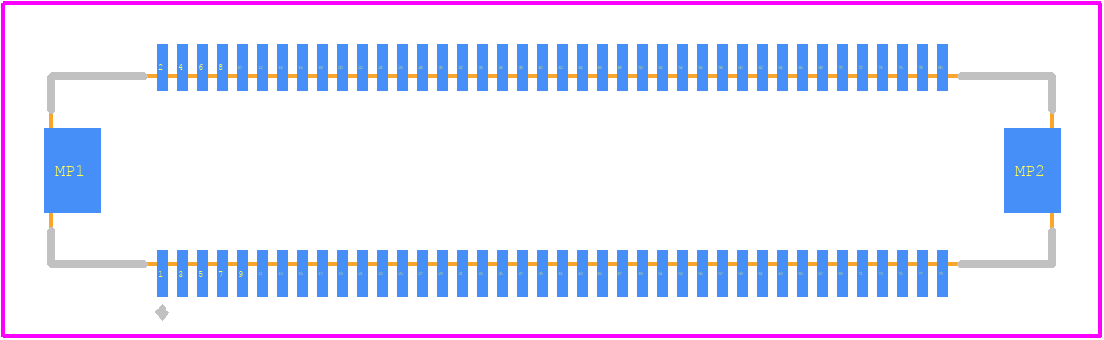

PCB Footprints

DF17B(1.0H)-80DP-0.5V(57) - Hirose PCB footprint - Other - Other - DF17B(1.0H)-80DP-0.5V(57)-2

click to zoom

3D Models

DF17B(1.0H)-80DP-0.5V(57) - Hirose - 3D model - Other - DF17B(1.0H)-80DP-0.5V(57)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF17B(1.0H)-80DP-0.5V(57)
Part Number DF17B(1.0H)-80DP-0.5V(57)
Manufacturer Hirose
Pin Count 82
Part Category Connector
Package Category Other
Footprint Name Other - DF17B(1.0H)-80DP-0.5V(57)-2
Released Date Oct 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF17B(1.0H)-80DP-0.5V(57) Details

Manufacturer Part Number:
DF17B(1.0H)-80DP-0.5V(57)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Body Breadth:
0.185 inch
Body Depth:
0.039 inch
Body Length:
0.984 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
AU
Contact Finish Termination:
GOLD
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
60 mΩ
Contact Style:
CENTRONIC
Dielectric Withstanding Voltage:
150VAC V
Durability:
50 Cycles
Filter Feature:
NO
Insulation Resistance:
500000000 Ω
Insulator Color:
WHITE
Insulator Material:
POLYAMIDE
Mating Contact Pitch:
0.019 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-35 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
5.1562 mm
Rated Current (Signal):
0.3 A
Reference Standard:
UL
Terminal Pitch:
0.508 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
80

DF17B(1.0H)-80DP-0.5V(57) Frequently Asked Questions (FAQs)

The recommended mating sequence for the DF17B(1.0H)-80DP-0.5V(57) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the DF17B(1.0H)-80DP-0.5V(57) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
The maximum operating temperature for the DF17B(1.0H)-80DP-0.5V(57) connector is 125°C. However, it's recommended to derate the connector's performance at temperatures above 100°C to ensure reliable operation.
The DF17B(1.0H)-80DP-0.5V(57) connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for exposure to harsh chemicals or prolonged immersion in water. Additional sealing or protection may be required for such applications.
The recommended cable size for the DF17B(1.0H)-80DP-0.5V(57) connector is AWG 28-32. It's recommended to use a cable with a insulation diameter of 0.5mm to 1.0mm to ensure reliable connections and minimize signal degradation.

Trust Checks

Community Provided

System Verified

Community Approved

DF17B(1.0H)-80DP-0.5V(57) Overview

Use the download button to access the DF17B(1.0H)-80DP-0.5V(57) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF17B, or try a keyword search, such as Headers and Edge Type Connectors
