The recommended mating height is 2.5mm, as specified in the datasheet. However, it's essential to ensure that the connector is mated within the specified height range to prevent damage or electrical issues.
While the DF1B-12P-2.5DSA(01) connector is designed to be reliable, it's crucial to consider the vibration specifications in your application. Hirose recommends a vibration amplitude of 1.5mm or less, and a frequency range of 10-55Hz. Exceeding these limits may affect the connector's performance or lifespan.
To ensure proper PCB layout and design, follow Hirose's recommended PCB footprint and layout guidelines, which can be found in the datasheet or on Hirose's website. Additionally, consider factors such as trace width, spacing, and impedance control to minimize signal integrity issues.
The operating temperature range for the DF1B-12P-2.5DSA(01) connector is -40°C to +85°C. However, it's essential to note that the connector's performance and lifespan may be affected by extreme temperatures, so it's crucial to consider temperature derating and thermal management in your design.
The DF1B-12P-2.5DSA(01) connector is designed to meet IP00 (IEC 60529) standards, which means it's not intended for use in humid or wet environments. If your application requires exposure to moisture, consider using a connector with a higher IP rating or implementing additional sealing or protection measures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF1B-12P-2.5DSA(01) Overview

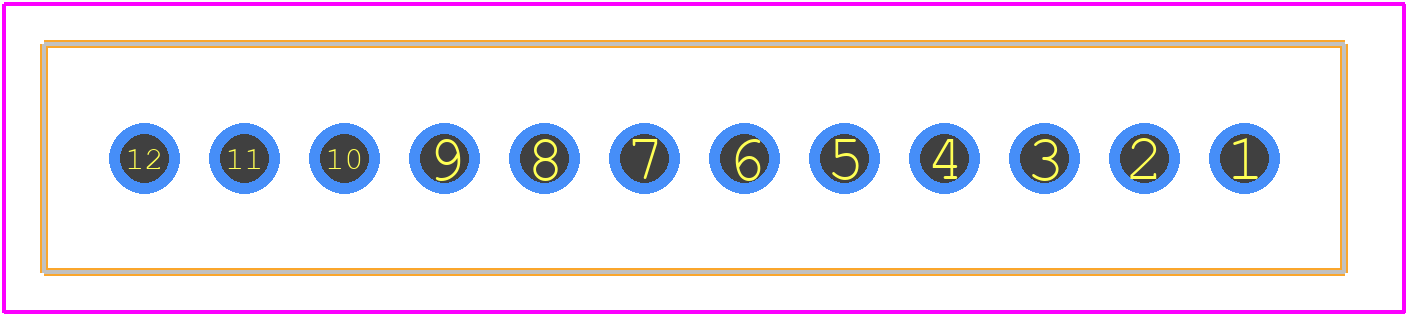

Use the download button to access the DF1B-12P-2.5DSA(01) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF1B-,
or try a keyword search, such as Headers and Edge Type Connectors
