Part Image

DF20EF-10DP-1V(65) - Hirose

Description: Connector Header Surface Mount 10 position 0.039" (1.00mm)

Download DF20EF-10DP-1V(65) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

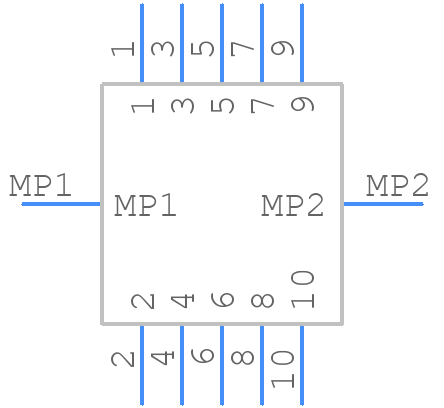

Symbol
DF20EF-10DP-1V(65) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF20EF-10DP-1V(65) - Hirose PCB footprint - Other - Other - DF20EF-10DP-1V(65)-3
click to zoom
3D Models
DF20EF-10DP-1V(65) - Hirose - 3D model - Other - DF20EF-10DP-1V(65)-3
click to zoom

DF20EF-10DP-1V(65) Details

  • Manufacturer Part Number:

    DF20EF-10DP-1V(65)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Body Breadth:

    0.21 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    0.29 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Dielectric Withstanding Voltage:

    300VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.039 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    FRICTION LOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

DF20EF-10DP-1V(65) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the DF20EF-10DP-1V(65) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF20EF-10DP-1V(65) connector is designed to withstand high-vibration environments. It has a robust design and secure locking mechanism that ensures reliable connections even in harsh conditions.
  • The maximum operating temperature for the DF20EF-10DP-1V(65) connector is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The DF20EF-10DP-1V(65) connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use additional sealing or protection measures if the connector will be exposed to high humidity or water.
  • The recommended torque for the screw locks on the DF20EF-10DP-1V(65) connector is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF20EF-10DP-1V(65) Overview

Use the download button to access the DF20EF-10DP-1V(65) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF20E, or try a keyword search, such as Headers and Edge Type Connectors
