- Part Number DF20EF-30DP-1V(52)
- Manufacturer Hirose
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - DF20EF-30DP-1V(52)-2
- Released Date Oct 8, 2021
- Last Modified Date Nov 19, 2023 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
DF20EF-30DP-1V(52) Details
-
Manufacturer Part Number:
DF20EF-30DP-1V(52)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
9
-
Body Breadth:
0.21 inch
-
Body Depth:
0.18 inch
-
Body Length:
0.68 inch
DF20EF-30DP-1V(52) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
-
Yes, the DF20EF-30DP-1V(52) connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration. However, it's recommended to perform additional testing and validation to ensure the connector meets the specific requirements of your application.
-
The DF20EF-30DP-1V(52) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to consider the specific environmental requirements of your application and consult with Hirose Electric Co Ltd or a qualified engineer for guidance.
-
The DF20EF-30DP-1V(52) connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.
-
The DF20EF-30DP-1V(52) connector is designed to be compatible with other Hirose Electric Co Ltd products. However, compatibility with products from other manufacturers should be verified through testing and validation to ensure reliable connections and performance.
Trust Checks
Community Provided
System Verified
Community Approved
DF20EF-30DP-1V(52) Overview

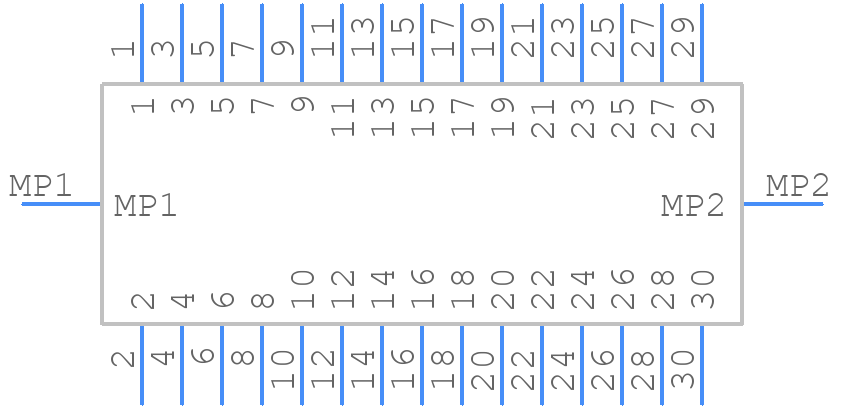

Use the download button to access the DF20EF-30DP-1V(52) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF20E,
or try a keyword search, such as Headers and Edge Type Connectors
