DF20EF-40DP-1V(52) - Hirose

Description: HIROSE(HRS) - DF20EF-40DP-1V(52) - Pin Header, Wire-to-Board, 1 mm, 2 Rows, 40 Contacts, Surface Mount Straight, DF20EF Series

Download DF20EF-40DP-1V(52) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

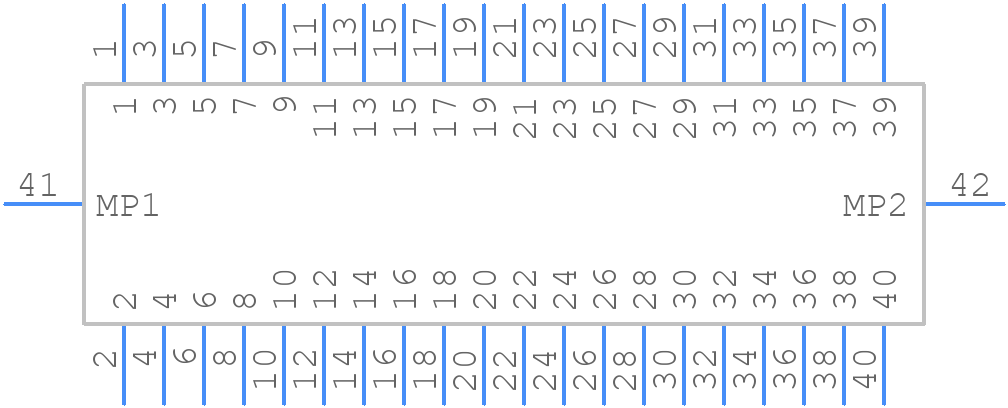

DF20EF-40DP-1V(52) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF20EF-40DP-1V(52) - Hirose PCB footprint - Other - Other - DF20EF-40DP-1V(52)-1
click to zoom
3D Models
DF20EF-40DP-1V(52) - Hirose - 3D model - Other - DF20EF-40DP-1V(52)-1
click to zoom

DF20EF-40DP-1V(52) Details

  • Manufacturer Part Number:

    DF20EF-40DP-1V(52)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Body Breadth:

    0.21 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    0.88 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Dielectric Withstanding Voltage:

    300VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.039 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    FRICTION LOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DF20EF-40DP-1V(52) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
  • Yes, the DF20EF-40DP-1V(52) connector is designed to withstand high-vibration environments, but it's recommended to follow Hirose's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The maximum operating temperature range for the DF20EF-40DP-1V(52) connector is -40°C to +105°C, but it's recommended to derate the connector's performance at extreme temperatures.
  • The DF20EF-40DP-1V(52) connector is designed to be resistant to water and chemicals, but it's recommended to follow Hirose's guidelines for environmental testing and to ensure proper sealing and protection of the connector.
  • The recommended torque value for the DF20EF-40DP-1V(52) connector's screw locks is 0.5 N·m to 1.5 N·m, but it's recommended to follow Hirose's guidelines for torque testing and to ensure proper tightening of the screw locks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF20EF-40DP-1V(52) Overview

Use the download button to access the DF20EF-40DP-1V(52) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF20E, or try a keyword search, such as Headers and Edge Type Connectors
