Description:The H8S/2113 Group is supported only for customers who have already adopted these products. The RX651, RX210 Groups are recommended for new designs.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input capacitor should be a low-ESR, high-frequency capacitor with a minimum capacitance of 10uF and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
To troubleshoot POR issues, check the power supply voltage, ensure the input capacitor is properly connected, and verify that the POR pin is not being pulled low externally. Also, review the POR timing and voltage threshold settings to ensure they meet the device's requirements.
To ensure EMI and EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Implement proper filtering, decoupling, and grounding techniques, and consider using a shielded enclosure or metal can package for the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF2117RVT20HV Overview

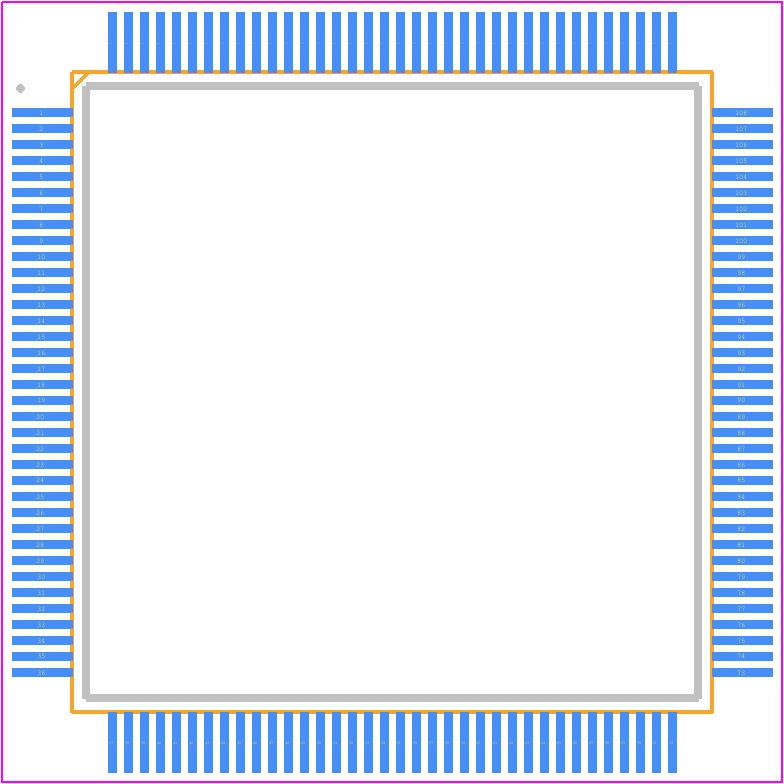

Use the download button to access the DF2117RVT20HV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF211,
or try a keyword search, such as Microcontrollers
