Description:The H8S/2113 Group is supported only for customers who have already adopted these products. The RX651, RX210 Groups are recommended for new designs.
Renesas provides a recommended PCB layout in their application note (AP6111) for the DF2117VT20HV, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms.
Using a different VRM than the recommended one may affect the overall system performance, power efficiency, and reliability. The recommended VRM is optimized for the DF2117VT20HV's specific requirements, so using a different one may require additional design considerations, such as adjusting the output voltage, current rating, and transient response.
To troubleshoot POR and BOD issues, check the power supply voltage, ensure proper decoupling, and verify the reset and brown-out detection circuitry. Use an oscilloscope to monitor the power-on reset signal and brown-out detection threshold. Consult the datasheet and application notes for specific guidance on troubleshooting these issues.
When using the DF2117VT20HV in a high-reliability or safety-critical application, consider implementing redundant power supplies, using fault-tolerant design techniques, and ensuring compliance with relevant industry standards (e.g., IEC 61508, ISO 26262). Additionally, perform thorough testing, validation, and verification to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF2117VT20HV Overview

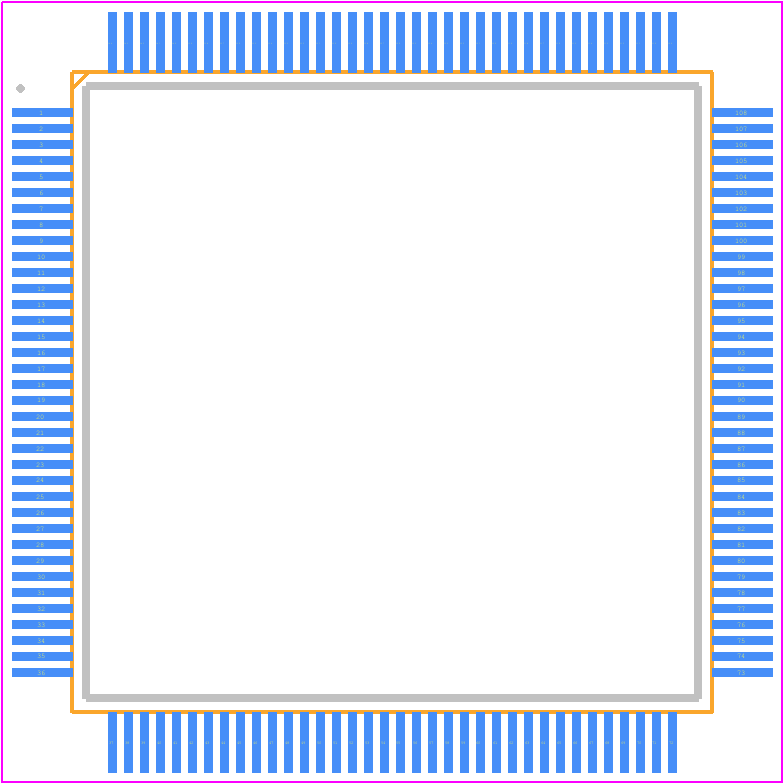

Use the download button to access the DF2117VT20HV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF211,
or try a keyword search, such as Microcontrollers
