DF2134BFA20V - Renesas Electronics

DF2134BFA20V Details

• Manufacturer Part Number:

  DF2134BFA20V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

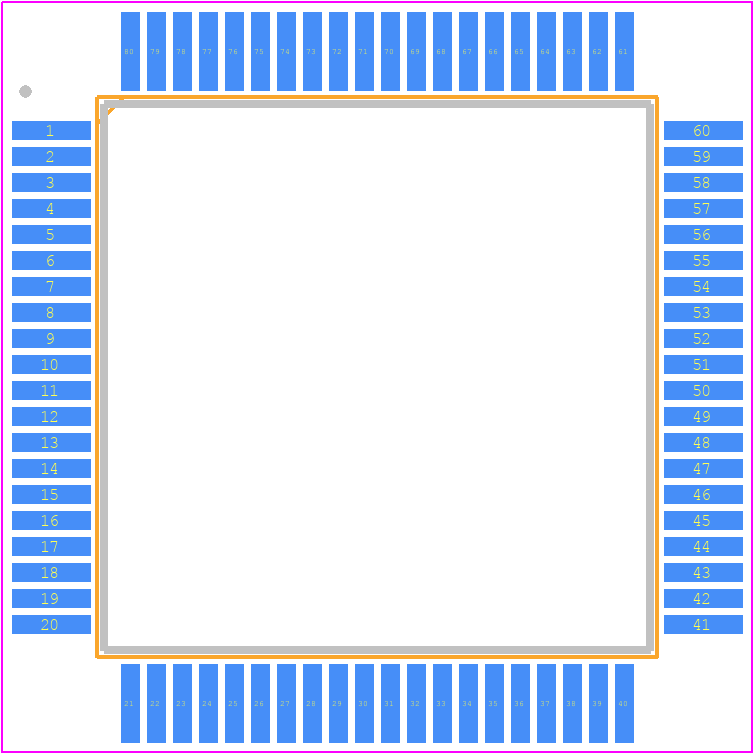

  17.20 X 17.20 MM, 0.65 MM PITCH, ROHS COMPLIANT, QFP-80

• Pin Count:

  80

• Manufacturer Package Code:

  PRQP0080JB

• HTS Code:

  8542.31.00.20

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT ALSO OPERATES IN 4V TO 5.5V AT 16MHZ

• Address Bus Width:

  16

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G80

• Length:

  14 mm

• Number of I/O Lines:

  66

• Number of Terminals:

  80

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  4096

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
