DF22-3P-7.92DS(53) - Hirose

Description: Power to the Board CONN HEADER R/A 3POS 7.92MM

Download DF22-3P-7.92DS(53) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF22-3P-7.92DS(53) - Hirose - PCB symbol
click to zoom
PCB Footprints

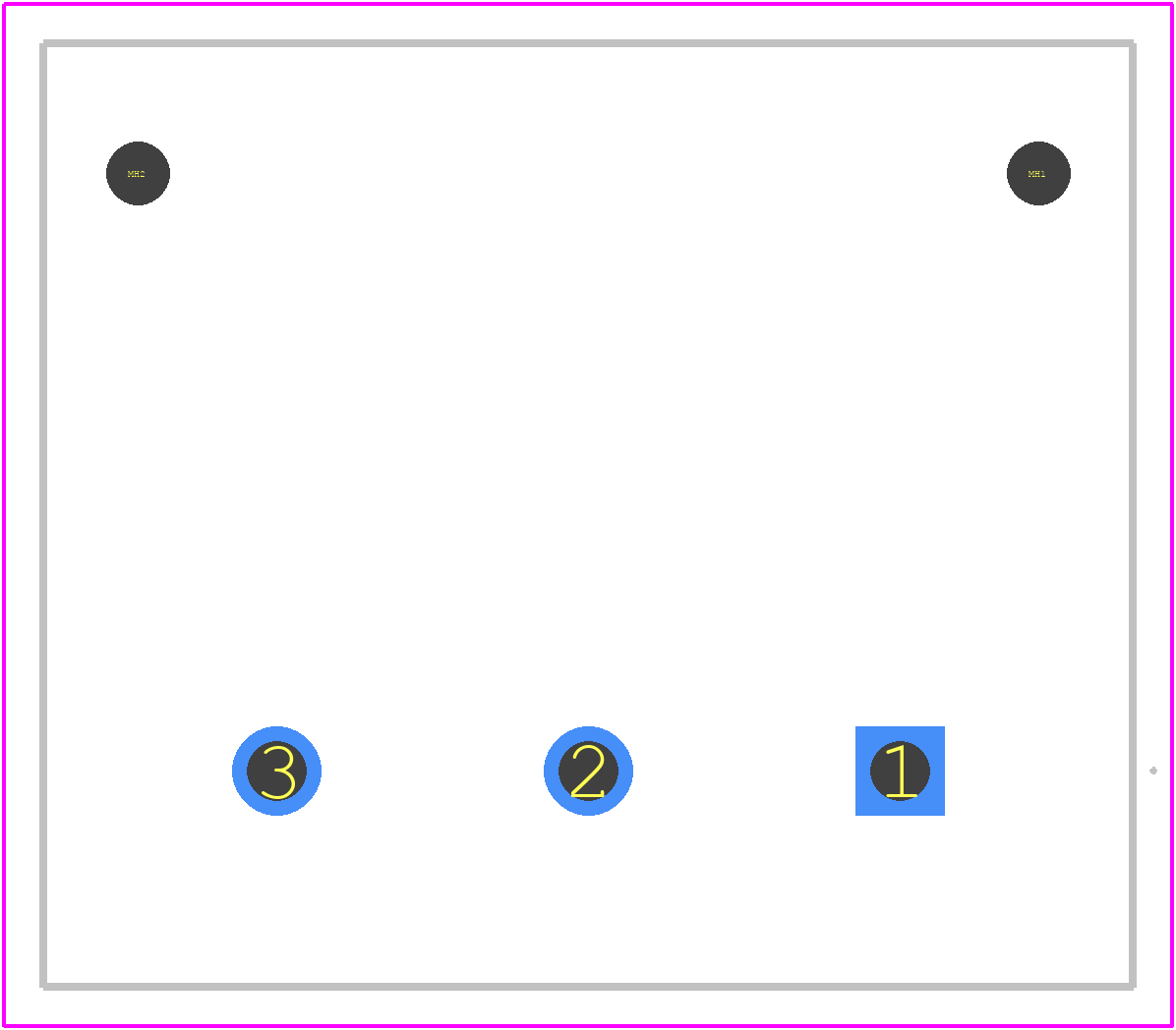

DF22-3P-7.92DS(53) - Hirose PCB footprint - Other - Other - DF22-3P-7.92DS(53)-2
click to zoom
3D Models
DF22-3P-7.92DS(53) - Hirose - 3D model - Other - DF22-3P-7.92DS(53)-2
click to zoom

DF22-3P-7.92DS(53) Details

  • Manufacturer Part Number:

    DF22-3P-7.92DS(53)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT (POWER): 30A

  • Body Breadth:

    0.48 inch

  • Body Depth:

    0.945 inch

  • Body Length:

    1.091 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;TUV;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

DF22-3P-7.92DS(53) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the screw locks.
  • Yes, the DF22-3P-7.92DS(53) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw locking.
  • The DF22-3P-7.92DS(53) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • The operating temperature range for the DF22-3P-7.92DS(53) is -40°C to 105°C (-40°F to 221°F).
  • It's not recommended to use a wire gauge that is not specified in the datasheet. Using a different wire gauge may affect the connector's performance, reliability, and durability. If you need to use a different wire gauge, consult with the manufacturer or a qualified engineer.
