The recommended mating sequence is to insert the plug into the receptacle while aligning the keyway, then rotate the plug clockwise to secure it. This ensures proper connection and prevents damage to the contacts.
Yes, the DF22-5P-7.92DS(53) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The maximum operating temperature range for the DF22-5P-7.92DS(53) connector is -40°C to 105°C. However, it's recommended to consult the datasheet and Hirose Electric Co Ltd for specific temperature ratings and derating information.
The DF22-5P-7.92DS(53) connector has a IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific environmental requirements of your application.
The recommended torque value for the DF22-5P-7.92DS(53) connector is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure proper connection and prevent damage to the contacts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF22-5P-7.92DS(53) Overview

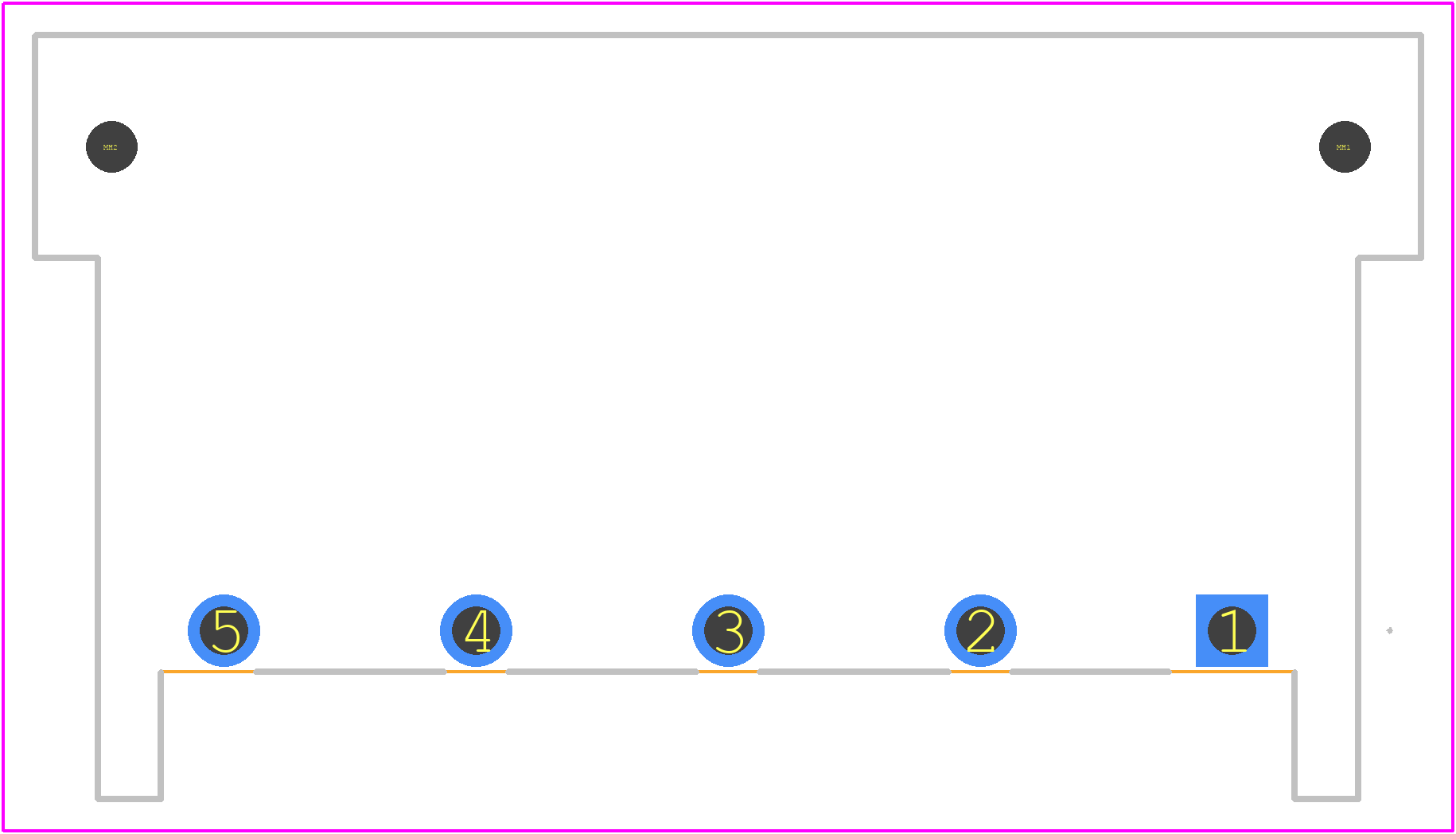

Use the download button to access the DF22-5P-7.92DS(53) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF22-,
or try a keyword search, such as Power Connectors
