DF2215RUTE24V - Renesas Electronics

Description: The H8S/2215 Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download DF2215RUTE24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

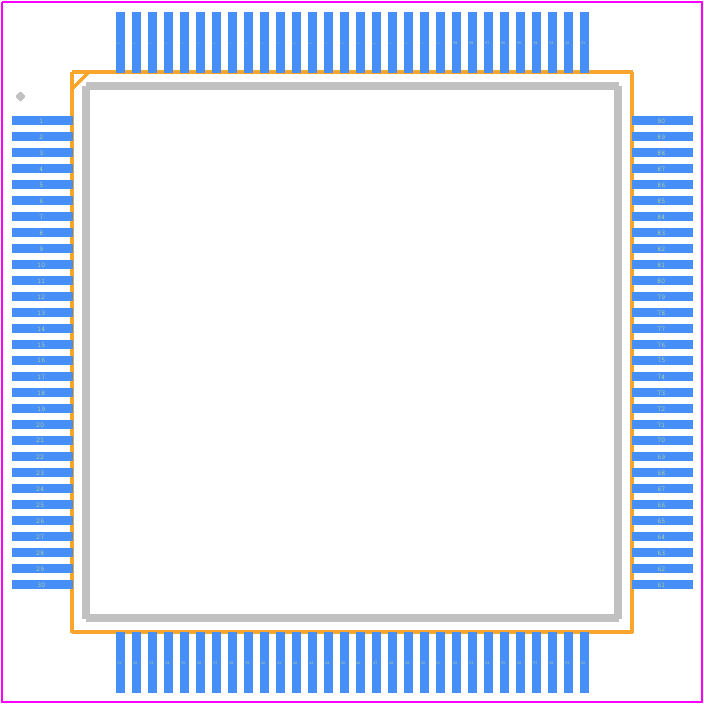

DF2215RUTE24V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PTQP0120LA-A
click to zoom
3D Models
DF2215RUTE24V - Renesas Electronics  - 3D model - Quad Flat Packages - PTQP0120LA-A
click to zoom

DF2215RUTE24V Details

  • Manufacturer Part Number:

    DF2215RUTE24V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TFQFP

  • Package Description:

    14 X 14 MM, 1.20 MM HEIGHT, 0.40 MM PITCH, ROHS COMPLIANT, PLASTIC, TFQFP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    PTQP0120LA

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT MIN 13MHZ

  • Address Bus Width:

    24

  • Bit Size:

    16

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Number of I/O Lines:

    75

  • Number of Terminals:

    120

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    24 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
