DF22R-4P-7.92DS(05) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

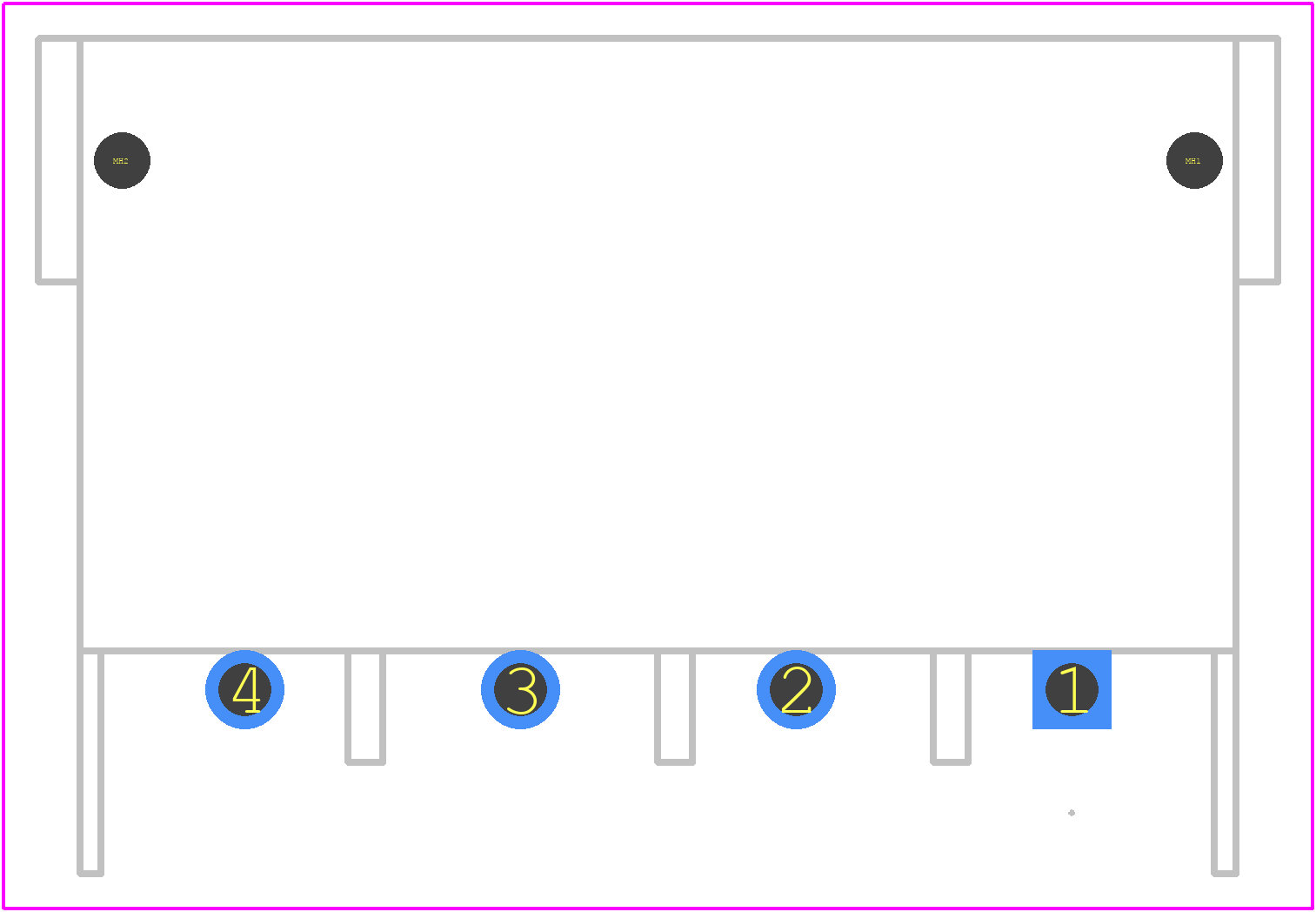

DF22R-4P-7.92DS(05) - Hirose PCB footprint - Other - Other - DF22R-4P-7.92DS(05)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF22R-4P-7.92DS(05)
Part Number DF22R-4P-7.92DS(05)
Manufacturer Hirose
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - DF22R-4P-7.92DS(05)-1
Released Date Nov 13, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF22R-4P-7.92DS(05) Details

Manufacturer Part Number:
DF22R-4P-7.92DS(05)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Additional Feature:
PANEL MOUNTABLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e2
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
7.92 mm
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

DF22R-4P-7.92DS(05) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the DF22R-4P-7.92DS(05) connector.
Yes, the DF22R-4P-7.92DS(05) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
Yes, the DF22R-4P-7.92DS(05) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C (-40°F to 221°F) and humidity resistance up to 95% RH.
The DF22R-4P-7.92DS(05) connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the DF22R-4P-7.92DS(05) connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.

Trust Checks

Community Provided

System Verified

Community Approved

DF22R-4P-7.92DS(05) Overview

Use the download button to access the DF22R-4P-7.92DS(05) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF22R, or try a keyword search, such as Headers and Edge Type Connectors
