DF22R-5P-7.92DS(05) - Hirose

Description: Hirose EnerBee DF22 Series, 7.92mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination

Download DF22R-5P-7.92DS(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF22R-5P-7.92DS(05) - Hirose - PCB symbol
click to zoom
PCB Footprints

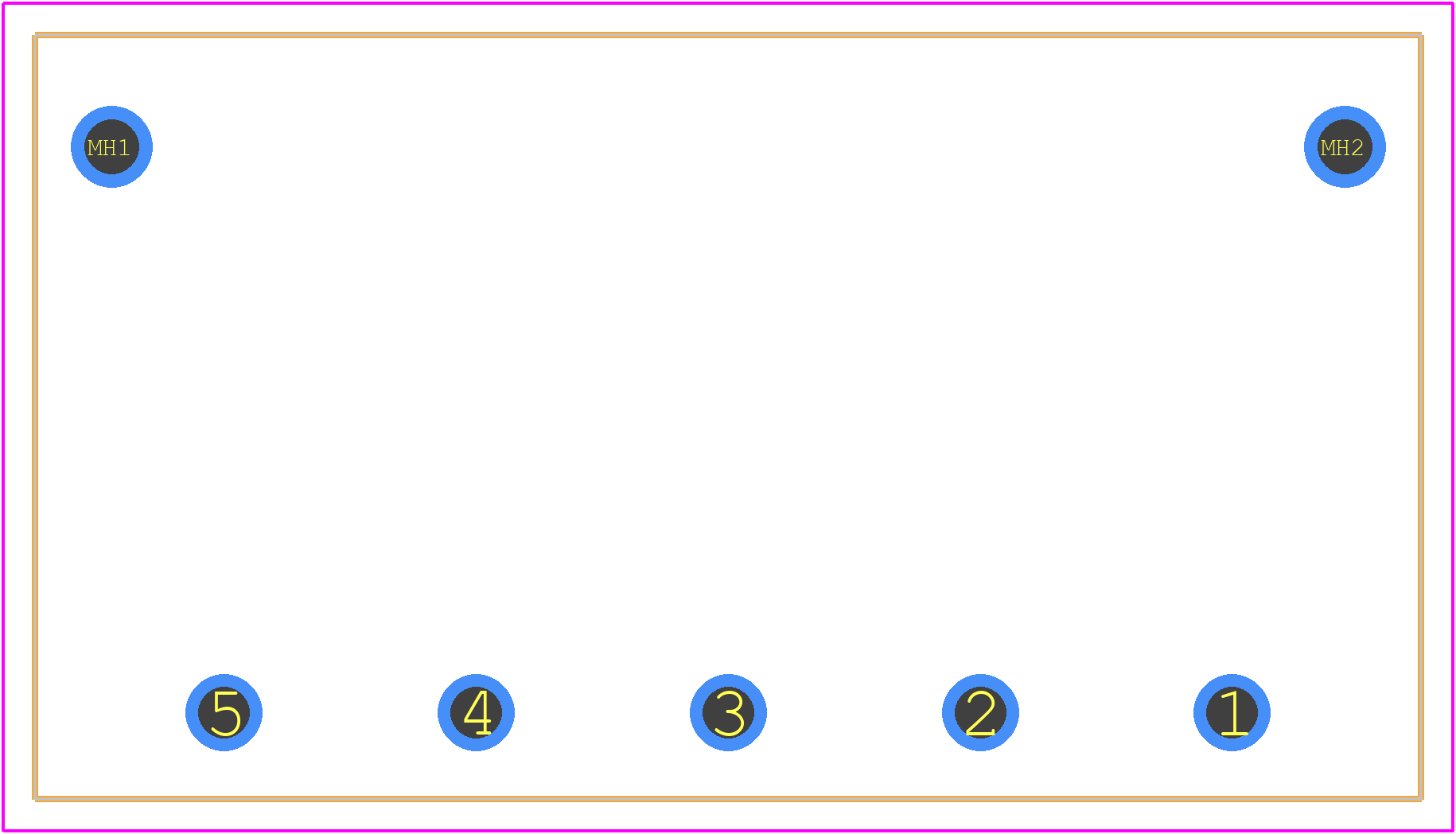

DF22R-5P-7.92DS(05) - Hirose PCB footprint - Other - Other - DF22R-5P-7.92DS(05)-2
click to zoom
3D Models
DF22R-5P-7.92DS(05) - Hirose - 3D model - Other - DF22R-5P-7.92DS(05)-2
click to zoom

DF22R-5P-7.92DS(05) Details

  • Manufacturer Part Number:

    DF22R-5P-7.92DS(05)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    7.92 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

DF22R-5P-7.92DS(05) Frequently Asked Questions (FAQs)

  • The recommended mating height is 7.92mm, as specified in the part number. However, it's essential to ensure the mating height is within the specified range to prevent damage or malfunction.
  • Yes, the DF22R-5P-7.92DS(05) connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to follow the recommended mounting and assembly procedures to ensure reliable performance.
  • The operating temperature range for the DF22R-5P-7.92DS(05) connector is -40°C to 105°C. It's essential to ensure the operating temperature stays within this range to prevent damage or malfunction.
  • Yes, the DF22R-5P-7.92DS(05) connector is compatible with lead-free soldering. Hirose Electric Co Ltd recommends following the recommended soldering conditions and procedures to ensure reliable connections.
  • The recommended torque for the DF22R-5P-7.92DS(05) connector's screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque specification to prevent damage or malfunction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF22R-5P-7.92DS(05) Overview

Use the download button to access the DF22R-5P-7.92DS(05) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF22R, or try a keyword search, such as Headers and Edge Type Connectors
