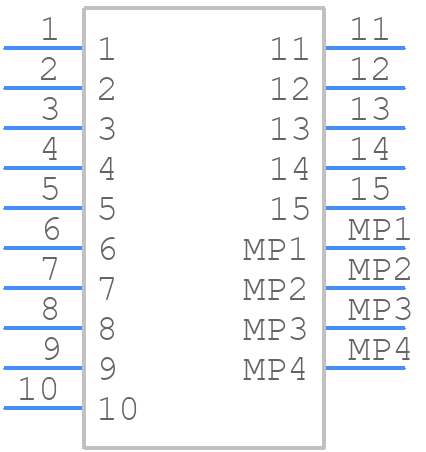

DF36-15S-0.4V(51) - Hirose

DF36-15S-0.4V(51) Details

• Manufacturer Part Number:

  DF36-15S-0.4V(51)

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  7.8

• Body Breadth:

  0.11 inch

• Body Depth:

  0.059 inch

• Body Length:

  0.38 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  100VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.016 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Reference Standard:

  UL

• Terminal Pitch:

  0.4 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0
