DF36049GHV - Renesas Electronics

DF36049GHV Details

• Manufacturer Part Number:

  DF36049GHV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

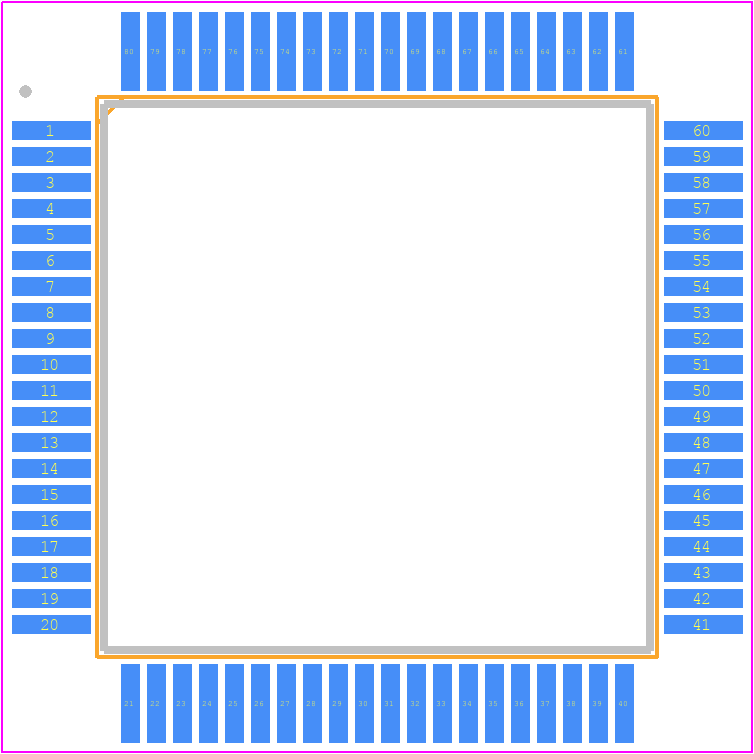

• Part Package Code:

  QFP

• Pin Count:

  80

• Manufacturer Package Code:

  PRQP0080JB

• HTS Code:

  8542.31.00.20

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  16

• CPU Family:

  H8/300H

• Clock Frequency-Max:

  20 MHz

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQFP-G80

• Length:

  14 mm

• Number of I/O Lines:

  67

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.68SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  98304

• ROM Programmability:

  FLASH

• Speed:

  20 MHz

• Supply Current-Max:

  36 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
