Part Image

DF36912GFHV - Renesas Electronics

Description: The H8/36912, H8/36902 Group is supported only for customers who have already adopted these products. The RX130, 110, RL78/G14, G12 Groups are recommended.

Download DF36912GFHV Model

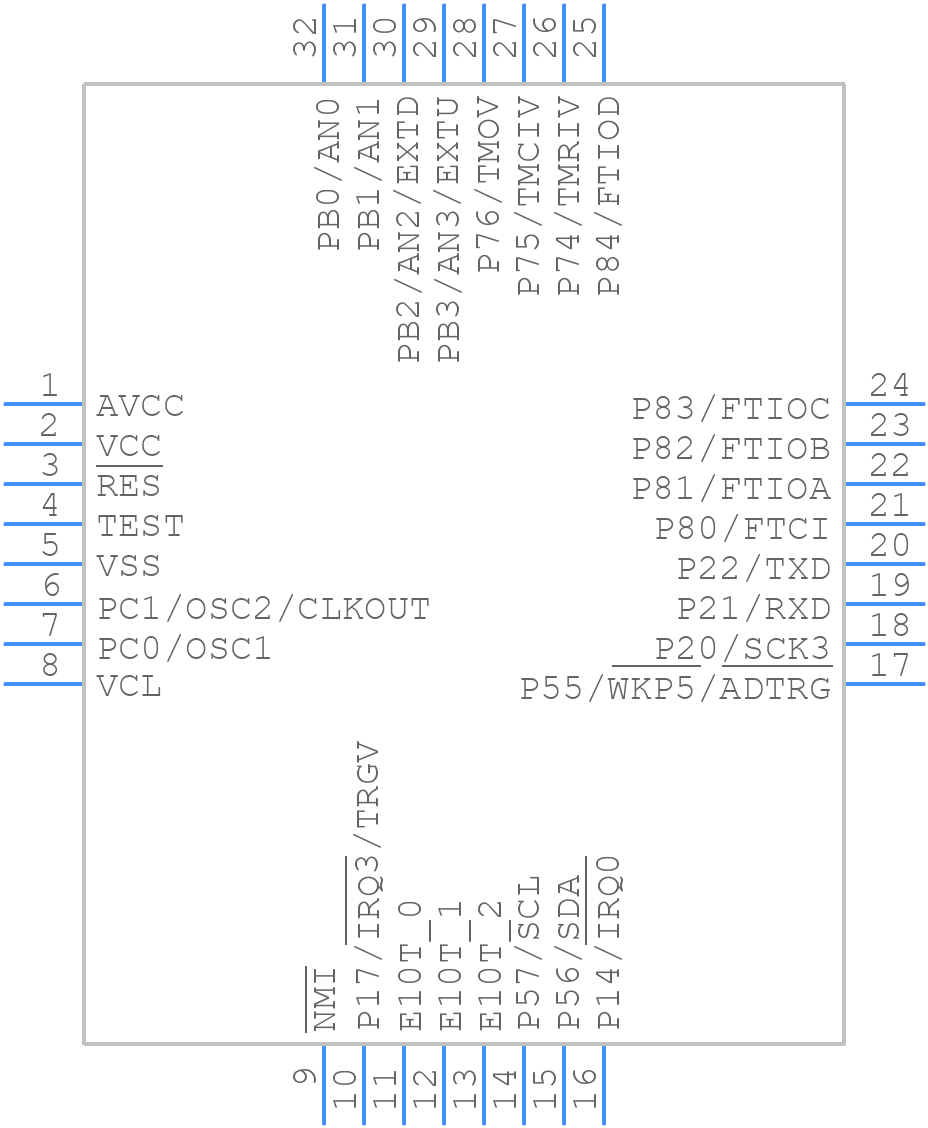

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DF36912GFHV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - FP-32A
click to zoom
3D Models
DF36912GFHV - Renesas Electronics  - 3D model - Quad Flat Packages - FP-32A
click to zoom

DF36912GFHV Details

  • Manufacturer Part Number:

    DF36912GFHV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLQP0032GC

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bit Size:

    16

  • CPU Family:

    H8/300H

  • JESD-30 Code:

    S-PQFP-G32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1536

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Speed:

    12 MHz

  • Supply Current-Max:

    18 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

DF36912GFHV Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • The DF36912GFHV has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent detection circuit to ensure reliable operation. Renesas provides a reference design in their application note (APL-AN-1202) that includes an overcurrent detection circuit using a sense resistor and a comparator.
  • Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7uF to 10uF for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The output voltage of the DF36912GFHV can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. Renesas provides a calculation formula in the datasheet to determine the required resistor values for a specific output voltage.
  • The maximum ambient temperature for the DF36912GFHV is 85°C, but it's recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet to ensure reliable operation.
