The recommended mating cycle for the DF37B-10DP-0.4V(51) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or an authorized distributor for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
To ensure proper polarization, make sure to align the keyway on the plug with the notch on the receptacle. The keyway is typically located on the top of the plug, and the notch is on the receptacle. Proper alignment will prevent incorrect mating and potential damage to the connector.
The recommended torque for securing the DF37B-10DP-0.4V(51) connector is 0.5-1.5 N·m (5-15 in-lbs). However, it's crucial to consult the datasheet or contact Hirose Electric Co Ltd for specific torque recommendations, as excessive torque can damage the connector.
The DF37B-10DP-0.4V(51) connector is designed for general-purpose applications. If you need a connector for high-vibration or high-shock applications, consider using a connector with enhanced ruggedness, such as Hirose's DF37 series with a locking mechanism or other specialized connectors designed for harsh environments.
The operating temperature range for the DF37B-10DP-0.4V(51) connector is -40°C to 85°C (-40°F to 185°F). However, it's essential to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings, as they may vary depending on the application and environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF37B-10DP-0.4V(51) Overview

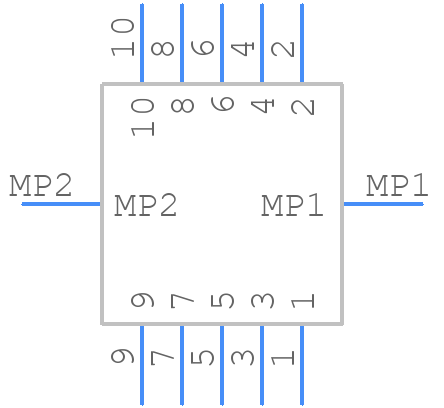

Use the download button to access the DF37B-10DP-0.4V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF37B,
or try a keyword search, such as Headers and Edge Type Connectors
