DF37B-24DP-0.4V(51) footprint, schematic symbol and 3D model by Hirose

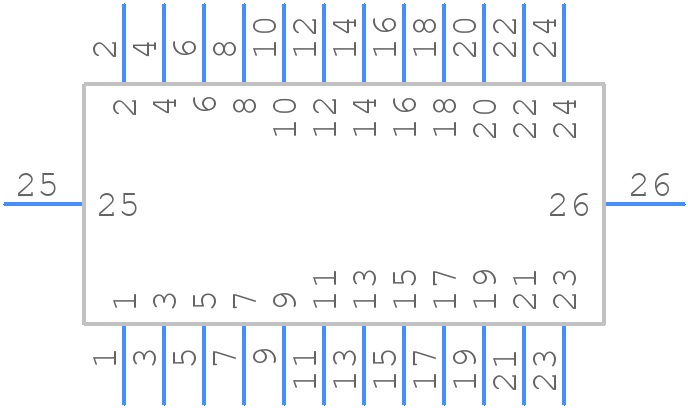

Symbol

click to zoom

PCB Footprints

DF37B-24DP-0.4V(51) - Hirose PCB footprint - Other - Other - DF37B-24DP-0.4V(51)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF37B-24DP-0.4V(51)
Part Number DF37B-24DP-0.4V(51)
Manufacturer Hirose
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - DF37B-24DP-0.4V(51)
Released Date Nov 27, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF37B-24DP-0.4V(51) Details

Manufacturer Part Number:
DF37B-24DP-0.4V(51)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.4 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
24

DF37B-24DP-0.4V(51) Frequently Asked Questions (FAQs)

The recommended mating sequence for the DF37B-24DP-0.4V(51) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
To ensure reliable connections, make sure to clean the connector contacts before mating, use the recommended torque for screw-type connectors, and avoid over-tightening or under-tightening the screws.
The maximum operating temperature for the DF37B-24DP-0.4V(51) connector is 105°C (221°F), as specified in the datasheet. Exceeding this temperature may affect the connector's performance and reliability.
Yes, the DF37B-24DP-0.4V(51) connector is designed to withstand vibrations and shocks. However, it's essential to follow the recommended mounting and screw-tightening procedures to ensure the connector remains secure.
The DF37B-24DP-0.4V(51) connector has a keyed design to prevent mis-mating. Ensure that the connector is properly aligned and mated to prevent damage or electrical shorts.

Trust Checks

Expert Contribution

System Verified

Community Approved

DF37B-24DP-0.4V(51) Overview

Use the download button to access the DF37B-24DP-0.4V(51) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF37B, or try a keyword search, such as Headers and Edge Type Connectors
