Part Image

DF40B-10DS-0.4V(51) - Hirose

Description: 10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold , 30V , 300mA , -35C ~ +85C

Download DF40B-10DS-0.4V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

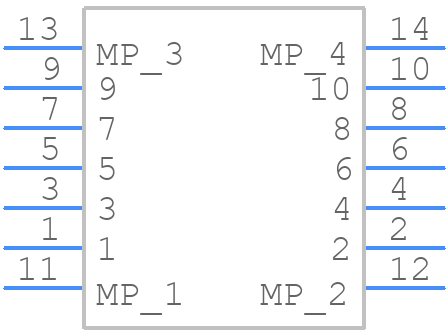

DF40B-10DS-0.4V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF40B-10DS-0.4V(51) - Hirose PCB footprint - Other - Other - DF40B-10DS-0.4V(51)-5
click to zoom
3D Models
DF40B-10DS-0.4V(51) - Hirose - 3D model - Other - DF40B-10DS-0.4V(51)-5
click to zoom

DF40B-10DS-0.4V(51) Details

  • Manufacturer Part Number:

    DF40B-10DS-0.4V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

DF40B-10DS-0.4V(51) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the DF40B-10DS-0.4V(51) connector is designed to withstand vibrations up to 10G, making it suitable for high-vibration applications.
  • The maximum operating temperature range for the DF40B-10DS-0.4V(51) connector is -40°C to 105°C.
  • Yes, the DF40B-10DS-0.4V(51) connector is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C.
  • The recommended mating cycle for the DF40B-10DS-0.4V(51) connector is 500 cycles.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF40B-10DS-0.4V(51) Overview

Use the download button to access the DF40B-10DS-0.4V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF40B, or try a keyword search, such as Headers and Edge Type Connectors
