DF40C-24DP-0.4V(51) - Hirose

Description: Board to Board & Mezzanine Connectors 24P SMT HEADER NO FITTING, NO BOSS

Download DF40C-24DP-0.4V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

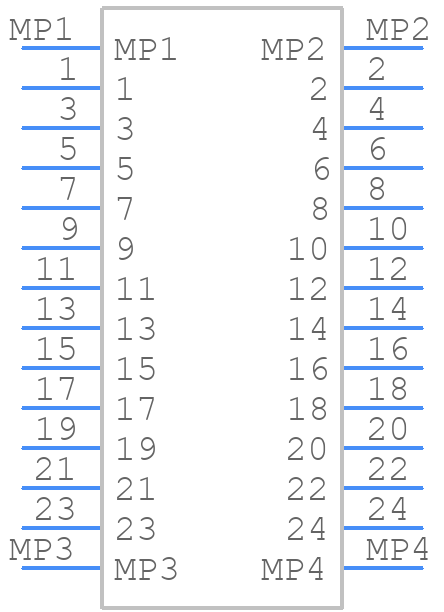

DF40C-24DP-0.4V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF40C-24DP-0.4V(51) - Hirose PCB footprint - Other - Other - DF40C-24DP-0.4V(51)-4
click to zoom
3D Models
DF40C-24DP-0.4V(51) - Hirose - 3D model - Other - DF40C-24DP-0.4V(51)-4
click to zoom

DF40C-24DP-0.4V(51) Details

  • Manufacturer Part Number:

    DF40C-24DP-0.4V(51)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.1

  • Connector Type:

    BOARD STACKING CONNECTOR

DF40C-24DP-0.4V(51) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the DF40C-24DP-0.4V(51) connector is designed to withstand vibrations up to 10G, making it suitable for high-vibration applications.
  • The maximum operating temperature range for the DF40C-24DP-0.4V(51) connector is -40°C to 105°C.
  • Yes, the DF40C-24DP-0.4V(51) connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended mating cycle for the DF40C-24DP-0.4V(51) connector is 500 cycles, as specified in the Hirose datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF40C-24DP-0.4V(51) Overview

Use the download button to access the DF40C-24DP-0.4V(51) schematic symbol, PCB footprint, and 3D model.
