Part Image

DF40TC-40DP-0.4V(51) - Hirose

Description: 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Download DF40TC-40DP-0.4V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

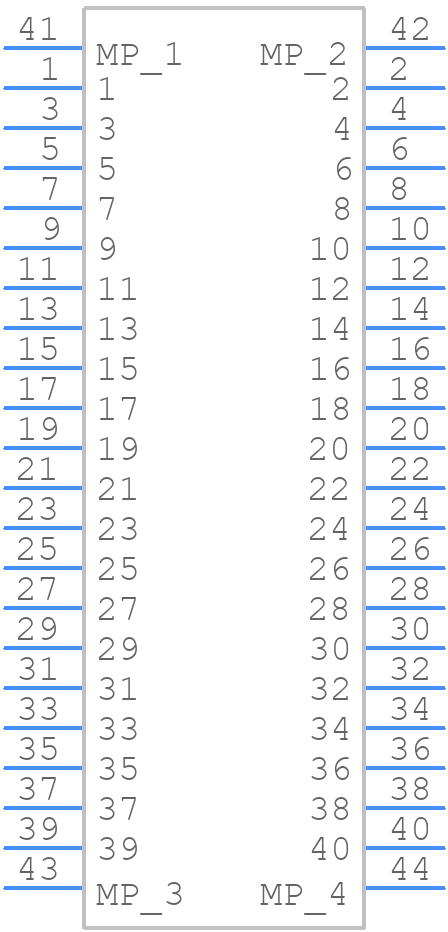

Symbol
DF40TC-40DP-0.4V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF40TC-40DP-0.4V(51) - Hirose PCB footprint - Other - Other - DF40TC-40DP-0.4V(51)-2
click to zoom

DF40TC-40DP-0.4V(51) Details

  • Manufacturer Part Number:

    DF40TC-40DP-0.4V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.8

  • Connector Type:

    BOARD STACKING CONNECTOR

DF40TC-40DP-0.4V(51) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the DF40TC-40DP-0.4V(51) is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow the Hirose guidelines for vibration testing and validation.
  • The maximum operating temperature for the DF40TC-40DP-0.4V(51) is 125°C, as specified in the datasheet.
  • Yes, the DF40TC-40DP-0.4V(51) is designed to be used in harsh environments, but it's recommended to follow the Hirose guidelines for environmental testing and validation, and to apply appropriate sealing or coating to ensure reliability.
  • The mating cycle life of the DF40TC-40DP-0.4V(51) is 500 cycles, as specified in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF40TC-40DP-0.4V(51) Overview

Use the download button to access the DF40TC-40DP-0.4V(51) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF40T, or try a keyword search, such as Headers and Edge Type Connectors
