DF51A-14DP-2DSA - Hirose

Description: HIROSE(HRS) - DF51A-14DP-2DSA - Wire-To-Board Connector, 2 mm, 28 Contacts, Header, SignalBee DF51 Series, Through Hole, 2 Rows

Download DF51A-14DP-2DSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF51A-14DP-2DSA - Hirose - PCB symbol
click to zoom
PCB Footprints

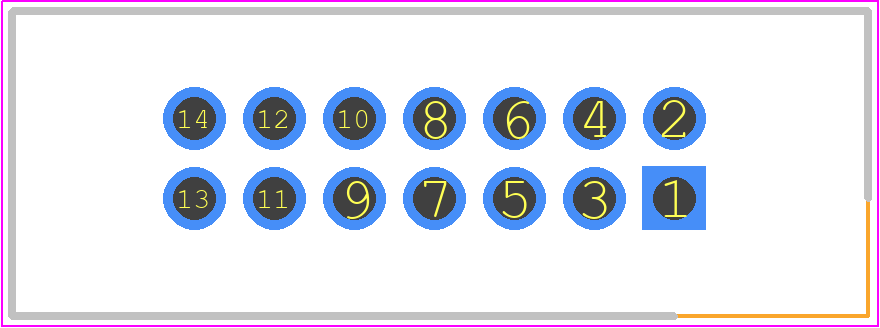

DF51A-14DP-2DSA - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - DF51A-14DP-2DSA
click to zoom
3D Models
DF51A-14DP-2DSA - Hirose - 3D model - Header, Shrouded - Straight PTH Box - DF51A-14DP-2DSA
click to zoom

DF51A-14DP-2DSA Details

  • Manufacturer Part Number:

    DF51A-14DP-2DSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    DF51-14DS-2C

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0
