DF51A-16DP-2DS(50) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

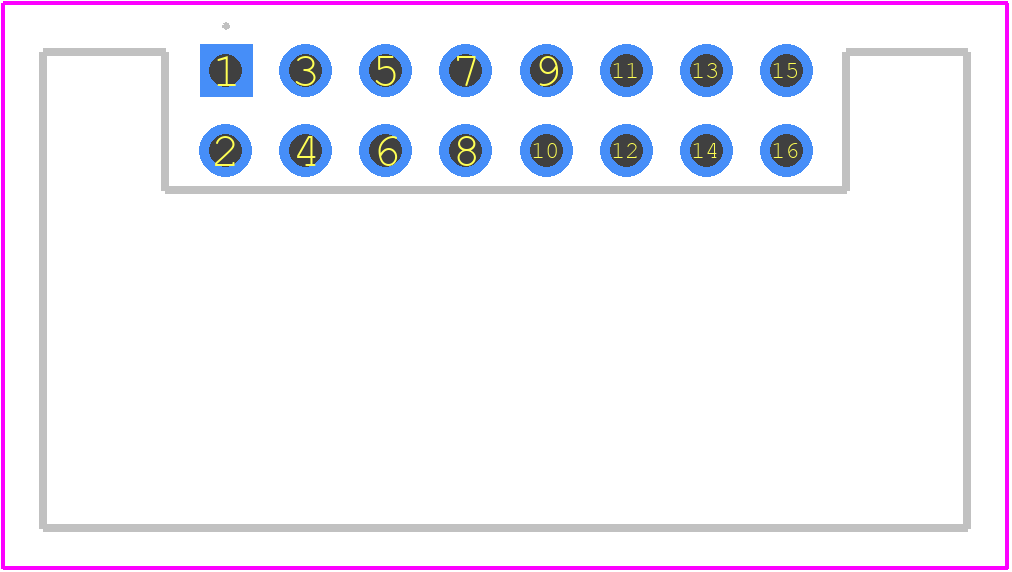

DF51A-16DP-2DS(50) - Hirose PCB footprint - Other - Other - DF51A-16DP-2DS(50)-2

click to zoom

3D Models

DF51A-16DP-2DS(50) - Hirose - 3D model - Other - DF51A-16DP-2DS(50)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF51A-16DP-2DS(50)
Part Number DF51A-16DP-2DS(50)
Manufacturer Hirose
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - DF51A-16DP-2DS(50)-2
Released Date Jul 22, 2025
Last Modified Date Jul 22, 2025 11:29 AM UTC
Pinout / Pin List Click Here (Member Only)

DF51A-16DP-2DS(50) Details

Manufacturer Part Number:
DF51A-16DP-2DS(50)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
Board Mounting Option:
HOLE 0.067
Body Breadth:
0.287 inch
Body Depth:
0.469 inch
Body Length:
0.909 inch
Connector Type:
BOARD CONNECTOR
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
650VAC V
Durability:
50 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
CUL; UL
Terminal Length:
0.118 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
16
UL Flammability Code:
94V-0

DF51A-16DP-2DS(50) Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
Yes, the DF51A-16DP-2DS(50) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The maximum cable diameter that can be used with the DF51A-16DP-2DS(50) connector is 2.5mm. Using a cable with a larger diameter may compromise the connector's performance and reliability.
Yes, the DF51A-16DP-2DS(50) connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your assembly process.
The operating temperature range of the DF51A-16DP-2DS(50) connector is -40°C to +105°C. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.

Trust Checks

Community Provided

System Verified

Community Approved

DF51A-16DP-2DS(50) Overview

Use the download button to access the DF51A-16DP-2DS(50) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF51A, or try a keyword search, such as Headers and Edge Type Connectors
