The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Handle the guide pins with care, as they are fragile and can be easily damaged. Use a soft, dry cloth to clean the guide pins, and avoid applying excessive force or pressure.
The maximum operating temperature for the DF51A-20DP-2DSA(01) connector is 125°C, as specified in the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
Yes, the DF51A-20DP-2DSA(01) connector is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10-2000 Hz. However, it's recommended to perform additional testing and validation for specific vibration profiles and applications.
To ensure reliable connections, make sure to follow proper assembly and mating procedures, use the recommended torque values, and inspect the connector for any signs of damage or wear. Regular cleaning and maintenance can also help prevent connection issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF51A-20DP-2DSA(01) Overview

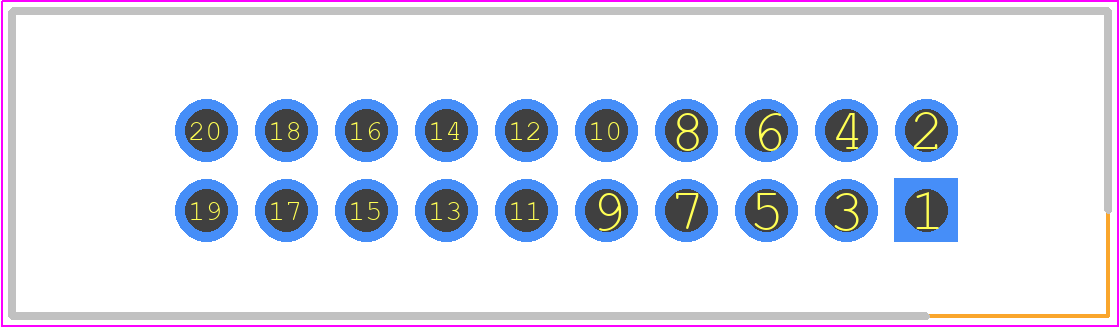

Use the download button to access the DF51A-20DP-2DSA(01) schematic symbol and PCB footprint.
