DF51A-28DP-2DSA(01) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

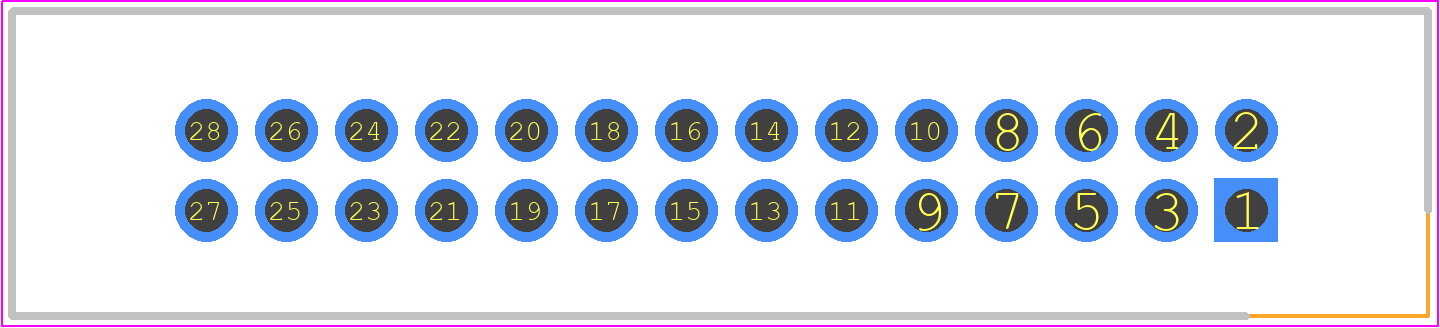

DF51A-28DP-2DSA(01) - Hirose PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - DF51A-28DP-2DSA(01)

click to zoom

3D Models

DF51A-28DP-2DSA(01) - Hirose - 3D model - Header, Receptacle - Straight PTH Box - DF51A-28DP-2DSA(01)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF51A-28DP-2DSA(01)
Part Number DF51A-28DP-2DSA(01)
Manufacturer Hirose
Pin Count 28
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - DF51A-28DP-2DSA(01)
Released Date Apr 20, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF51A-28DP-2DSA(01) Details

Manufacturer Part Number:
DF51A-28DP-2DSA(01)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
BOARD CONNECTOR

Trust Checks

Community Provided

System Verified

Community Approved

DF51A-28DP-2DSA(01) Overview

Use the download button to access the DF51A-28DP-2DSA(01) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF51A, or try a keyword search, such as Headers and Edge Type Connectors
