DF51K-12DP-2DS(800) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

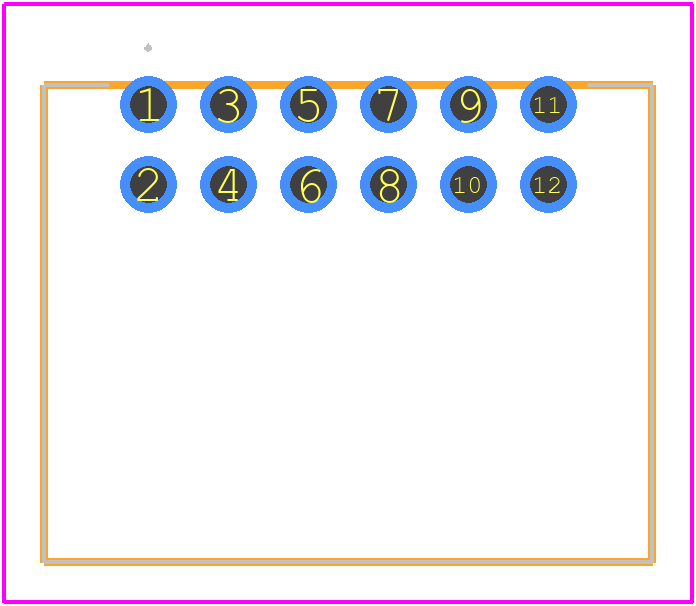

DF51K-12DP-2DS(800) - Hirose PCB footprint - Other - Other - DF51K-12DP-2DS(800)-1

click to zoom

3D Models

DF51K-12DP-2DS(800) - Hirose - 3D model - Other - DF51K-12DP-2DS(800)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF51K-12DP-2DS(800)
Part Number DF51K-12DP-2DS(800)
Manufacturer Hirose
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - DF51K-12DP-2DS(800)-1
Released Date May 5, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF51K-12DP-2DS(800) Details

Manufacturer Part Number:
DF51K-12DP-2DS(800)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
Board Mounting Option:
HOLE 0.067
Body Breadth:
0.344 inch
Body Depth:
0.469 inch
Body Length:
0.598 inch
Connector Type:
BOARD CONNECTOR
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
650VAC V
Durability:
30 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1.5 A
Reference Standard:
CUL; UL
Terminal Length:
0.118 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
12
UL Flammability Code:
94V-0

DF51K-12DP-2DS(800) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the DF51K-12DP-2DS(800) is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's crucial to ensure proper mounting and screw tightening to maintain the connector's integrity in such environments.
The DF51K-12DP-2DS(800) has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental resistance.
The DF51K-12DP-2DS(800) can operate in temperatures ranging from -40°C to 105°C. It's essential to consider the temperature range of your application to ensure the connector's reliability and performance.
While the datasheet specifies AWG 24-20 wire sizes, it's possible to use other wire sizes with the DF51K-12DP-2DS(800). However, you should consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector's performance and reliability with alternative wire sizes.

Trust Checks

Expert Contribution

System Verified

Community Approved

DF51K-12DP-2DS(800) Overview

Use the download button to access the DF51K-12DP-2DS(800) schematic symbol, PCB footprint, and 3D model.
