DF52-15S-0.8H(21) - Hirose

Description: Hirose DF52 52 Series 0.8mm Pitch 15 Way Right Angle Female FPC Connector

Download DF52-15S-0.8H(21) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

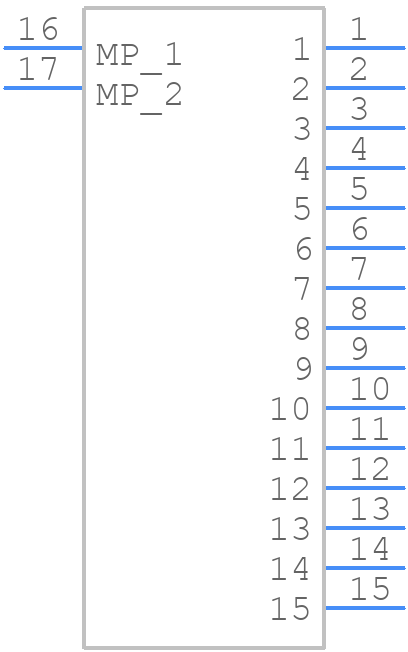

DF52-15S-0.8H(21) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF52-15S-0.8H(21) - Hirose PCB footprint - Other - Other - DF52-15S-0.8H(21)-3
click to zoom
3D Models
DF52-15S-0.8H(21) - Hirose - 3D model - Other - DF52-15S-0.8H(21)-3
click to zoom

DF52-15S-0.8H(21) Details

  • Manufacturer Part Number:

    DF52-15S-0.8H(21)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

DF52-15S-0.8H(21) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the DF52-15S-0.8H(21) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments.
  • Yes, the DF52-15S-0.8H(21) has a rating of IP67, which means it is protected against dust and water immersion up to 1m for 30 minutes, making it suitable for use in harsh environments.
  • The maximum operating temperature range for the DF52-15S-0.8H(21) is -40°C to 105°C, as specified in the datasheet.
  • Yes, the DF52-15S-0.8H(21) is designed to accommodate cables with gauges ranging from AWG24 to AWG20, but it's recommended to check the specific cable requirements and compatibility before use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF52-15S-0.8H(21) Overview

Use the download button to access the DF52-15S-0.8H(21) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF52-, or try a keyword search, such as Headers and Edge Type Connectors
