Part Image

DF52-16S-0.8H(21) - Hirose

Description: 16 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin , 100V , 1.5A , -40°C ~ 85°C

Download DF52-16S-0.8H(21) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

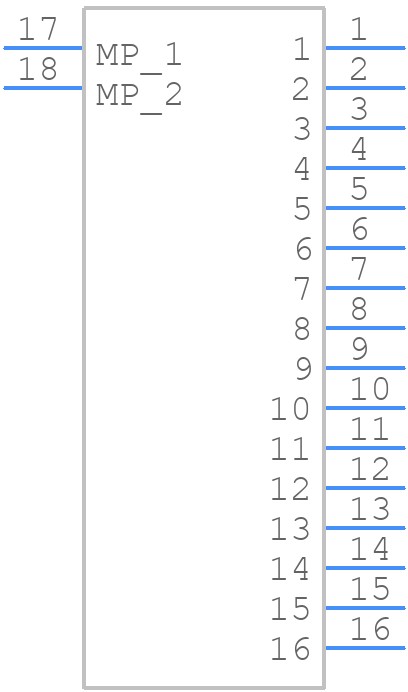

DF52-16S-0.8H(21) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF52-16S-0.8H(21) - Hirose PCB footprint - Other - Other - DF52-16S-0.8H(21)-4
click to zoom
3D Models
DF52-16S-0.8H(21) - Hirose - 3D model - Other - DF52-16S-0.8H(21)-4
click to zoom

DF52-16S-0.8H(21) Details

  • Manufacturer Part Number:

    DF52-16S-0.8H(21)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

DF52-16S-0.8H(21) Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the DF52-16S-0.8H(21) connector is 0.5 N·m to 1.5 N·m.
  • Yes, the DF52-16S-0.8H(21) connector is designed to withstand high-vibration environments and is suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the DF52-16S-0.8H(21) connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity. However, it's recommended to consult with Hirose Electric Co Ltd for specific application requirements.
  • The mating cycle life of the DF52-16S-0.8H(21) connector is 500 cycles minimum.
  • Yes, the DF52-16S-0.8H(21) connector is designed to be compatible with automated assembly and inspection systems, making it suitable for high-volume production.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF52-16S-0.8H(21) Overview

Use the download button to access the DF52-16S-0.8H(21) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF52-, or try a keyword search, such as Headers and Edge Type Connectors
