DF52-17S-0.8H(21) footprint, schematic symbol and 3D model by Hirose

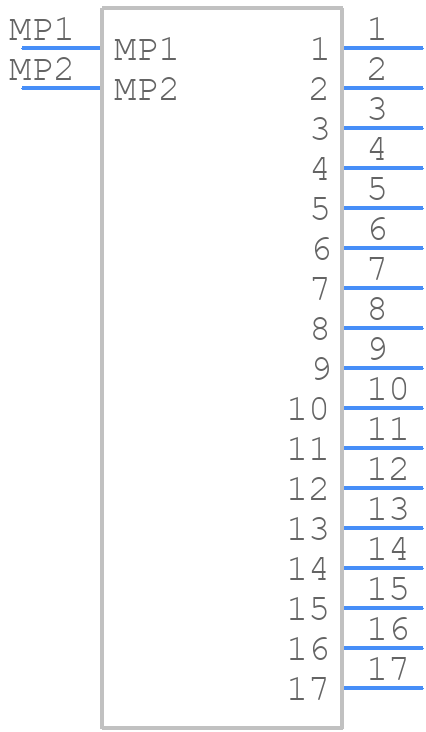

Symbol

click to zoom

PCB Footprints

DF52-17S-0.8H(21) - Hirose PCB footprint - Other - Other - DF52-17S-0.8H(21)-2

click to zoom

3D Models

DF52-17S-0.8H(21) - Hirose - 3D model - Other - DF52-17S-0.8H(21)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF52-17S-0.8H(21)
Part Number DF52-17S-0.8H(21)
Manufacturer Hirose
Pin Count 19
Part Category Connector
Package Category Other
Footprint Name Other - DF52-17S-0.8H(21)-2
Released Date Nov 18, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF52-17S-0.8H(21) Details

Manufacturer Part Number:
DF52-17S-0.8H(21)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
0.8 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
17
UL Flammability Code:
94V-0

DF52-17S-0.8H(21) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the DF52-17S-0.8H(21) is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
The maximum operating temperature for the DF52-17S-0.8H(21) is 125°C, as specified in the datasheet.
The DF52-17S-0.8H(21) has a IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it is not recommended for use in environments with exposure to harsh chemicals.
The mating cycle life of the DF52-17S-0.8H(21) is 500 cycles, as specified in the datasheet.

Trust Checks

Community Provided

System Verified

Community Approved

DF52-17S-0.8H(21) Overview

Use the download button to access the DF52-17S-0.8H(21) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF52-, or try a keyword search, such as Headers and Edge Type Connectors
