DF56-40S-0.3V(51) - Hirose

Description: 40 Position Receptacle Connector Surface Mount

Download DF56-40S-0.3V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

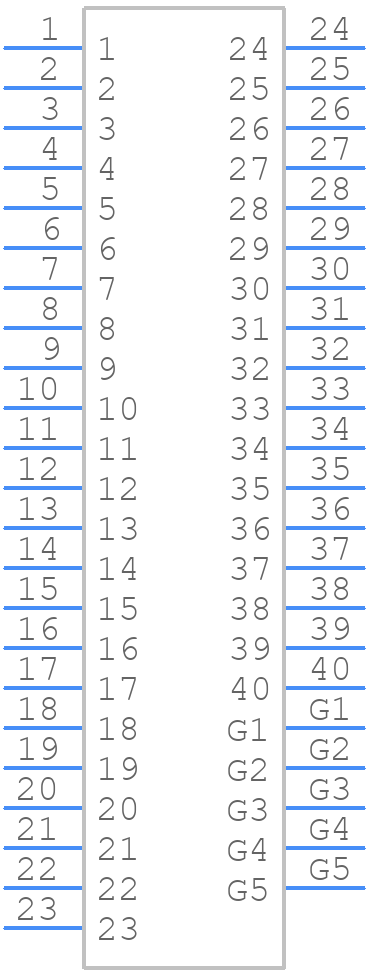

DF56-40S-0.3V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF56-40S-0.3V(51) - Hirose PCB footprint - Other - Other - DF56-40S-0.3V(51)-3
click to zoom
3D Models
DF56-40S-0.3V(51) - Hirose - 3D model - Other - DF56-40S-0.3V(51)-3
click to zoom

DF56-40S-0.3V(51) Details

  • Manufacturer Part Number:

    DF56-40S-0.3V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

DF56-40S-0.3V(51) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
  • Yes, the DF56-40S-0.3V(51) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments.
  • Yes, the DF56-40S-0.3V(51) is compatible with lead-free soldering and meets the requirements of the RoHS directive.
  • The maximum operating temperature range for the DF56-40S-0.3V(51) is -40°C to 105°C, as specified in the datasheet.
  • The DF56-40S-0.3V(51) has a moisture-resistant design, but it is not fully waterproof. It can be used in humid environments, but it is not recommended for use in wet or submerged applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF56-40S-0.3V(51) Overview

Use the download button to access the DF56-40S-0.3V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF56-, or try a keyword search, such as Headers and Edge Type Connectors
