DF60-1P-10.16DS(26) - Hirose

Description: Hirose DF Series, Series Number 60, 10.16mm Pitch 1 Way 1 Row Right Angle PCB Header, Solder Termination, 45A

Download DF60-1P-10.16DS(26) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF60-1P-10.16DS(26) - Hirose - PCB symbol
click to zoom
PCB Footprints

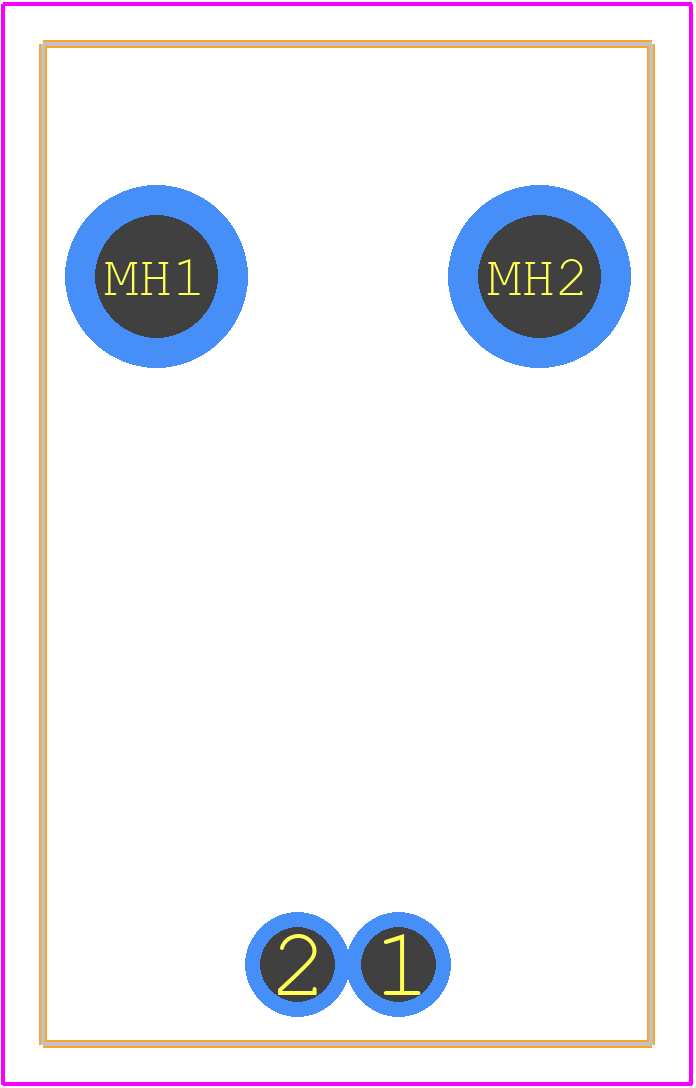

DF60-1P-10.16DS(26) - Hirose PCB footprint - Other - Other - DF60-1P-10.16DS(26)-1
click to zoom
3D Models
DF60-1P-10.16DS(26) - Hirose - 3D model - Other - DF60-1P-10.16DS(26)-1
click to zoom

DF60-1P-10.16DS(26) Details

  • Manufacturer Part Number:

    DF60-1P-10.16DS(26)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P1

  • Contact Resistance:

    2 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    3000VAC V

  • Durability:

    30 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Reference Standard:

    UL,TUV

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

DF60-1P-10.16DS(26) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to insert the plug into the receptacle at a slight angle, then rotate it to the fully mated position to ensure proper connection and prevent damage to the contacts.
  • Yes, the DF60-1P-10.16DS(26) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications, but it's recommended to consult with Hirose's application engineers for specific guidance.
  • The maximum cable diameter that can be used with the DF60-1P-10.16DS(26) connector is 1.6mm, but it's recommended to consult with Hirose's application engineers for specific guidance on cable selection and assembly.
  • Yes, the DF60-1P-10.16DS(26) connector is designed to be compatible with automated assembly processes, but it's recommended to consult with Hirose's application engineers for specific guidance on assembly and testing procedures.
  • The operating temperature range for the DF60-1P-10.16DS(26) connector is -40°C to 105°C, but it's recommended to consult with Hirose's application engineers for specific guidance on temperature-related performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF60-1P-10.16DS(26) Overview

Use the download button to access the DF60-1P-10.16DS(26) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF60-, or try a keyword search, such as Power Connectors
