DF60-3P-10.16DS(26) - Hirose

Description: Hirose DF Series, Series Number 60, 10.16mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 40A

Download DF60-3P-10.16DS(26) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF60-3P-10.16DS(26) - Hirose - PCB symbol
click to zoom
PCB Footprints

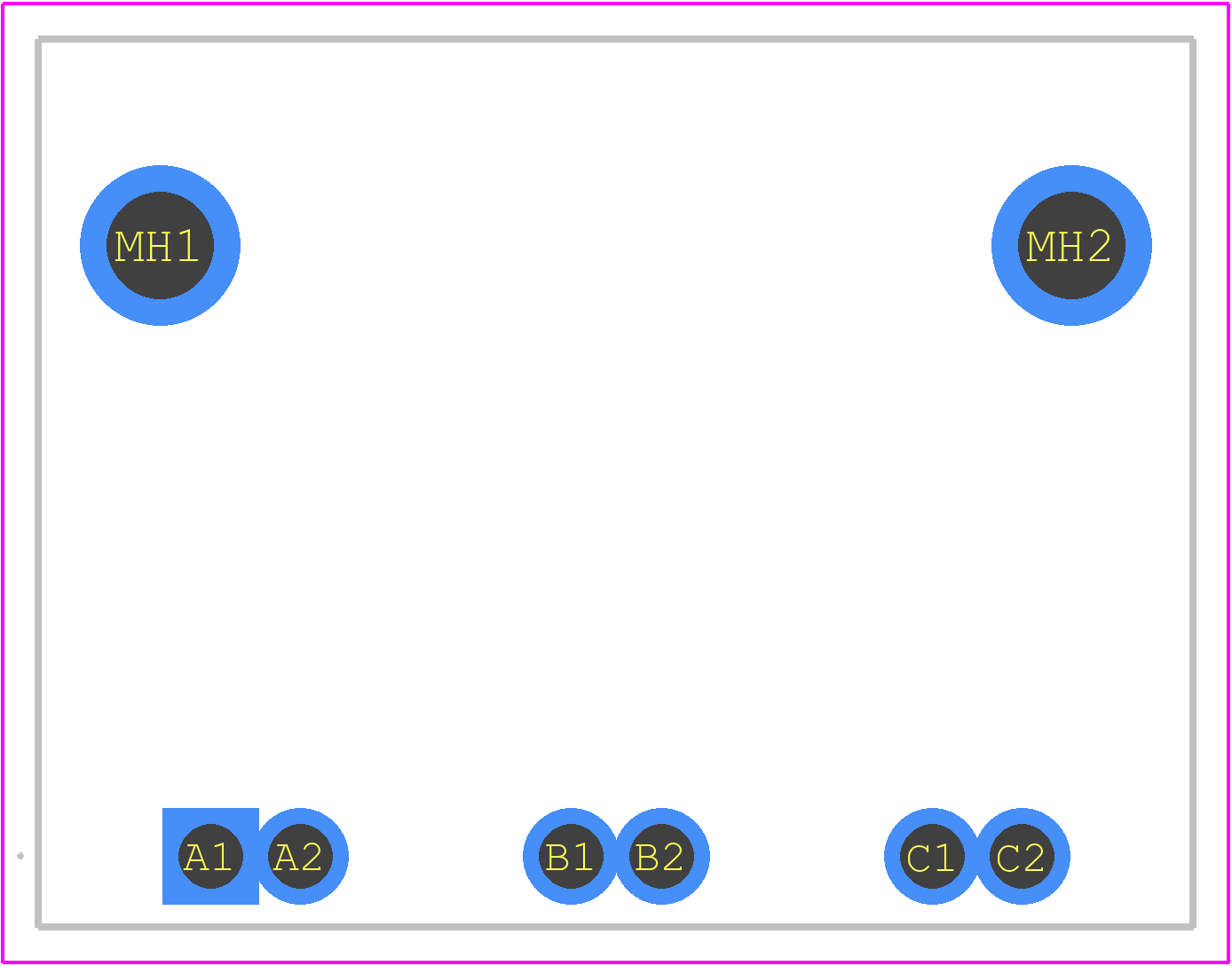

DF60-3P-10.16DS(26) - Hirose PCB footprint - Other - Other - DF60-3P-10.16DS(26)-4
click to zoom
3D Models
DF60-3P-10.16DS(26) - Hirose - 3D model - Other - DF60-3P-10.16DS(26)-4
click to zoom

DF60-3P-10.16DS(26) Details

  • Manufacturer Part Number:

    DF60-3P-10.16DS(26)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P3

  • Contact Resistance:

    2 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    3000VAC V

  • Durability:

    30 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Reference Standard:

    UL,TUV

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

DF60-3P-10.16DS(26) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF60-3P-10.16DS(26) connector is 20-30 cycles, depending on the application and environmental conditions.
  • Yes, the DF60-3P-10.16DS(26) connector is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration applications such as industrial machinery and automotive systems.
  • The maximum operating temperature range for the DF60-3P-10.16DS(26) connector is -40°C to 105°C, making it suitable for use in a wide range of applications.
  • Yes, the DF60-3P-10.16DS(26) connector is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The recommended torque value for the DF60-3P-10.16DS(26) connector is 0.5-1.5 N·m, depending on the specific application and requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF60-3P-10.16DS(26) Overview

Use the download button to access the DF60-3P-10.16DS(26) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF60-, or try a keyword search, such as Power Connectors
