DF60-4P-10.16DSA(26) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

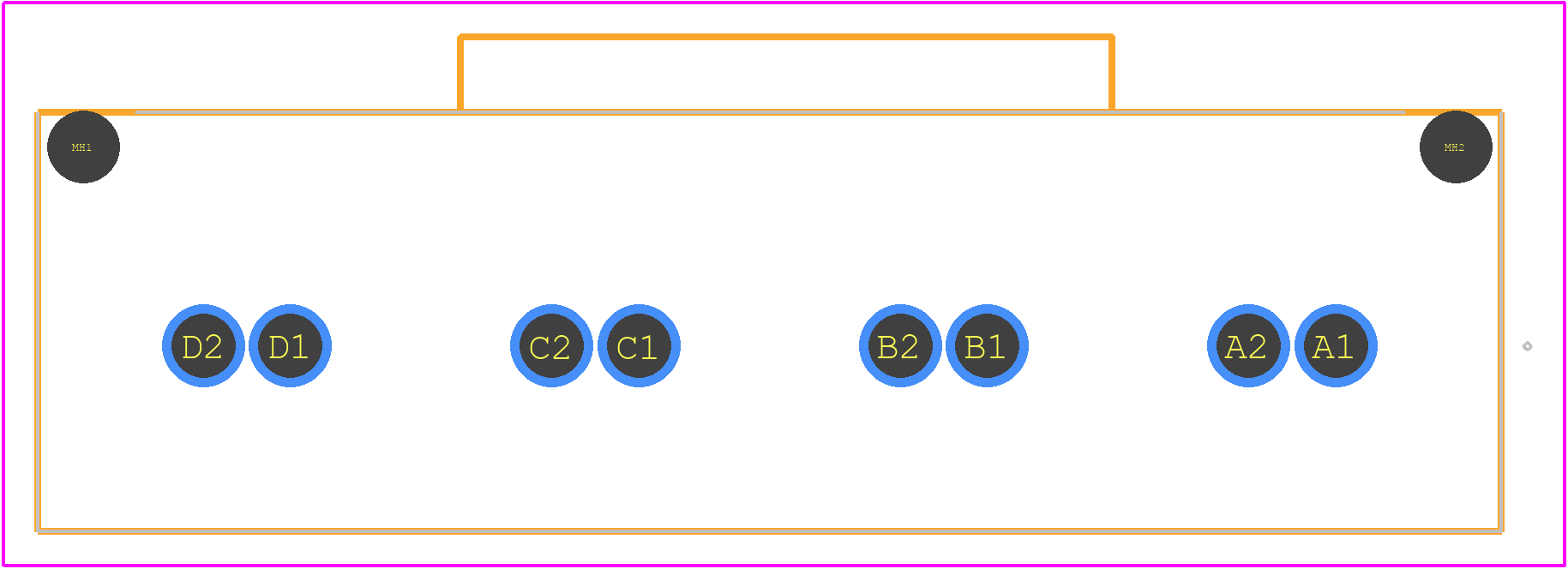

PCB Footprints

DF60-4P-10.16DSA(26) - Hirose PCB footprint - Other - Other - DF60-4P-10.16DSA(26)-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF60-4P-10.16DSA(26)
Part Number DF60-4P-10.16DSA(26)
Manufacturer Hirose
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - DF60-4P-10.16DSA(26)-3
Released Date Aug 30, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF60-4P-10.16DSA(26) Details

Manufacturer Part Number:
DF60-4P-10.16DSA(26)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Board Mounting Option:
SPLIT BOARD LOCK
Connector Type:
BOARD CONNECTOR
Contact Arrangement:
S0P4
Contact Resistance:
2 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
3000VAC V
Durability:
30 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mixed Contacts:
YES
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Reference Standard:
UL,TUV
Termination Type:
SOLDER
Total Number of Contacts:
4

DF60-4P-10.16DSA(26) Frequently Asked Questions (FAQs)

The recommended torque is 0.5 N·m to 1.5 N·m (5 gf·cm to 15 gf·cm) according to Hirose's application notes.
Yes, the DF60-4P-10.16DSA(26) connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz, making it suitable for high-vibration applications.
The DF60-4P-10.16DSA(26) connector is rated for operating temperatures from -40°C to 105°C and can withstand humidity up to 90% RH. However, it's recommended to consult Hirose's environmental testing reports and application notes for specific guidance on using the connector in harsh environments.
The DF60-4P-10.16DSA(26) connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the DF60-4P-10.16DSA(26) connector is designed for automated assembly and wire harnessing processes, with features such as tape-and-reel packaging and pick-and-place compatibility.
